3959584C92
HOSE AIR CONDITION EVAPORATOR TO COMP DAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$104.95
$125.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE A/C EVAPORATOR TO COMP DAY

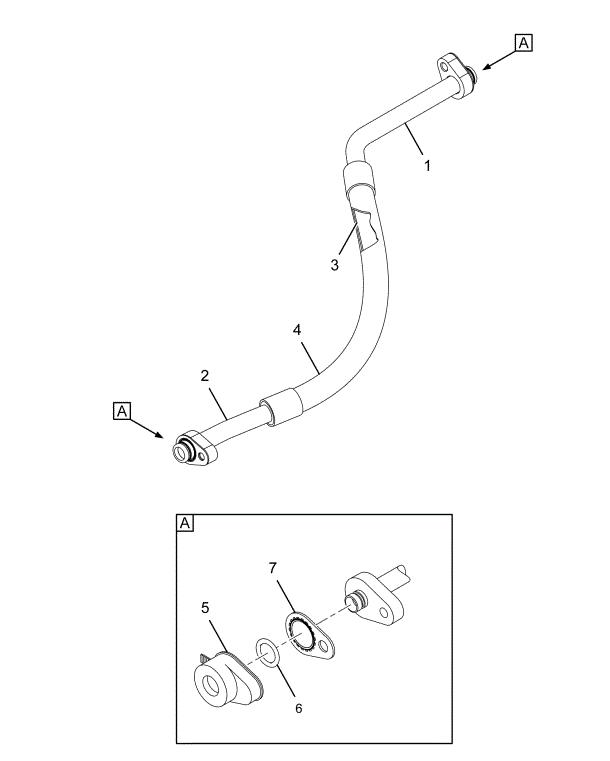

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| A/C FITTING EVAPORATOR OUT TUBE ASSEMBLY 3/4 NOM OD | 1 | 3989793C1 |
| A/C FITTING COMP IN TUBE ASSEMBLY 3/4 NOM OD | 1 | 3959600C1 |
| LOOM, CONVOLUTED ELECTRICAL WIRE 1.25" I.D. X 1.518" O.D. | 425 | 584067C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 2 | 3555227C1 |
| O-RING SEAL 15 35/64" X 2 5/8" | 2 | 3543728C1 |
| SEAL, C- PLATE 3/4" | 2 | 3543882C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
