3539081C91
MIRROR REAR VW HTD/MTRZD RH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$669.95
$803.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

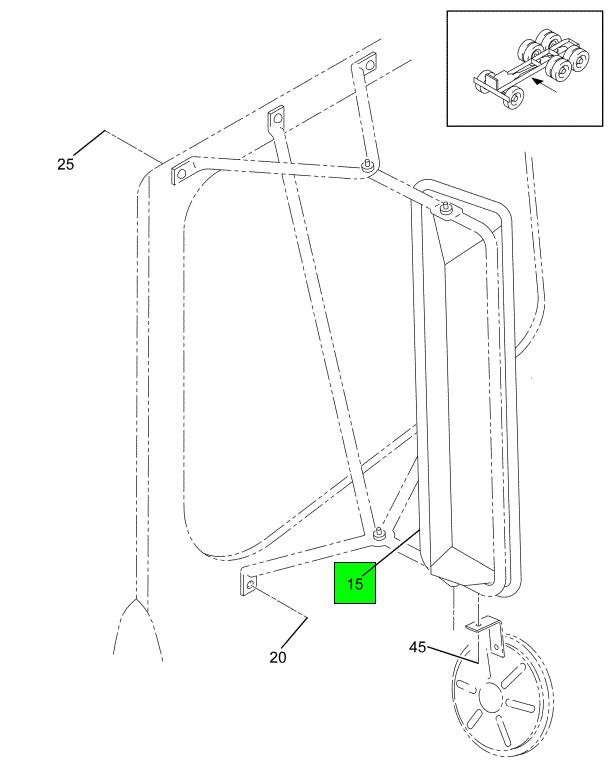

MIRROR, MOTORIZED HEATED CONVEX RIGHT
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARM REAR VIEW MIRROR W/HARNESS INSIDE | 1 | 2504341C91 |
| BRACKET, MOUNTING MIRROR CONVEX | 1 | 2502505C1 |
| GLASS, CONVEX HEATED MIRROR | 1 | 2502507C1 |
| GLASS, FLAT HEATED MIRROR W/LOCK RING | 1 | 2502508C1 |
| HEAD, MOTORIZED HEATED MIRROR RIGHT | 1 | 2502503C91 |
| RING ,O LOCK | 1 | 2502504C1 |
| BRACKET, MOUNTING UPPER REAR VIEW MIRROR 80" | 1 | 1657046C1 |
| BRACKET, MOUNTING LOWER MIRROR | 1 | 1657047C1 |
| CONTROL, GLASS ACTUATOR FLAT | 1 | 2502506C1 |
| BRACE, DIAGONAL MIRROR | 1 | 1657045C1 |
| WASHER, FLAT | 6 | 28588R1 |
| WASHER, LOCK | 2 | 27304R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
