3513765C92
PANEL, LOW ROOF CAB WITH AIR DEFLECTOR 97"
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$3,099.95
$3,719.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, LOW ROOF CAB W/AIR DEFLECTOR 97"

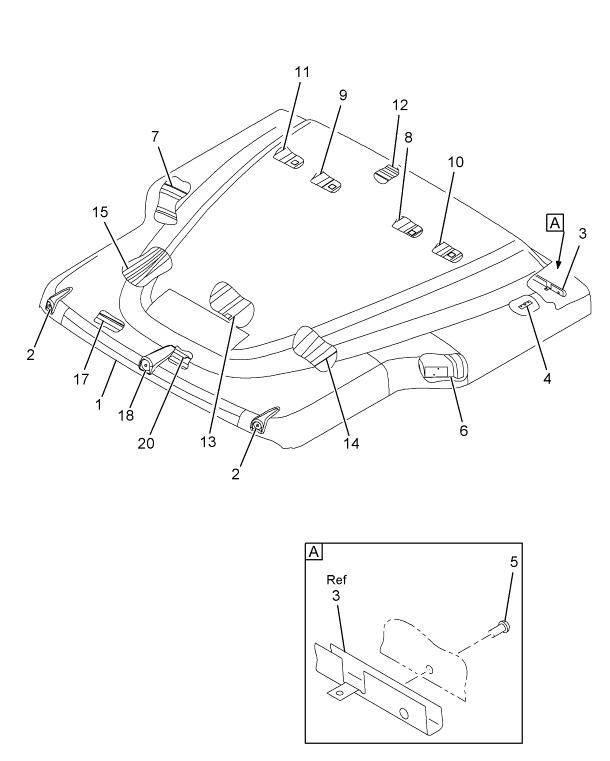

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL ROOF CAB OUTER 97" LOW ROOF HD2 | 1 | 3512454C2 |
| REINFORCEMENT SLEEPER OTR LH-LOW-ROOF | 1 | 2028348C1 |
| REINFORCEMENT SLEEPER OTR RIGHT HAND-LOW-ROOF | 1 | 2028349C1 |
| REINFORCEMENT REAR-LOW-ROOF | 1 | 2013209C1 |
| REINFORCEMENT | 1 | 2013208C2 |
| REINFORCEMENT | 1 | 2028310C2 |
| REINFORCEMENT | 1 | 2028311C2 |
| REINFORCEMENT FRONT HEADER LOW ROOF HD2 | 1 | 3514249C1 |
| PLATE ASSEMBLY SUNSHADE MOUNTING, CENTER | 1 | 3514407C1 |
| PLATE, TAPPING SUNSHADE MOUNTING | 2 | 3521365C1 |
| PRODUCT GRAPHIC ,ORNMT HOOD SERIAL NUMBER | 1 | 2006830C1 |
| BRACKET, MOUNTING ROOF EXTENDER FILLER REAR | 1 | 2012892C3 |
| BRACKET, AIR DEFLECTOR MOUNTING | 10 | 2037524C1 |
| RIVET, BLIND | 13 | 2040952C1 |
| REINFORCEMENT MID LH-LOW-ROOF | 1 | 2028312C1 |
| REINFORCEMENT MID RIGHT HAND-LOW-ROOF | 1 | 2028313C1 |
| REINFORCEMENT SLEEPER INNER LH-LOW-ROOF | 1 | 2028858C1 |
| REINFORCEMENT SLEEPER INNER RIGHT HAND-LOW-ROOF | 1 | 2028859C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
