3533755C95
PANEL DOOR LEFT HAND CONV FNT STANDARD POWER W/MIRROR
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL DOOR LEFT HAND CONV FNT STANDARD POWER W/MIRROR
Package Dimensions
41.0 x 35.0 x 5.0 in
Weight
11 lbs

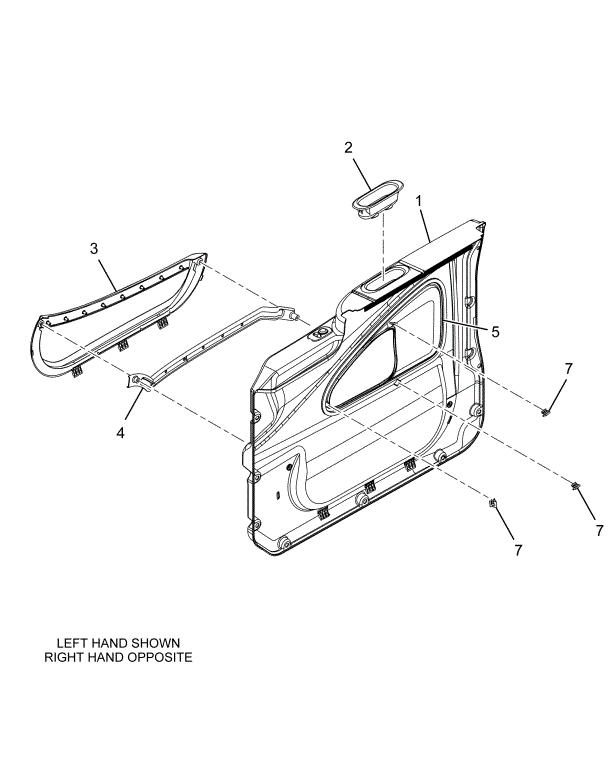

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, FRONT DOOR TRIM ,L UPGRADE POWER | 1 | 6104675C1 |
| HANDLE, DOOR INSIDE, PULL CUP- | 1 | 3599971C2 |
| PANEL, MAP POCKET-DRAWBRIDGE GRAY | 1 | 6105258C1 |
| PANEL, MAP POCKET REINFORCEMENT L | 1 | 2518225C91 |
| PANEL, MAP POCKET REINFORCEMENT L | 1 | 6105278C1 |
| PANEL, CLOTH BOLSTER INSERT, LEFT HAND | 1 | 3742136C1 |
| FASTENER, SPRING CLIP | 3 | 3616801C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
