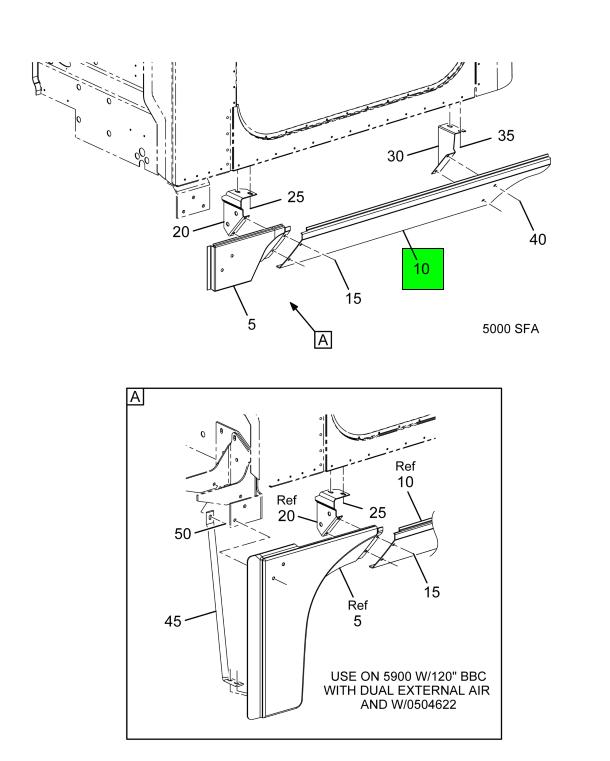

3553381C92
PANEL, LEFT CAB SKIRT W/LIGHTS
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, LEFT CAB SKIRT W/LIGHTS
Weight
0.6 lbs

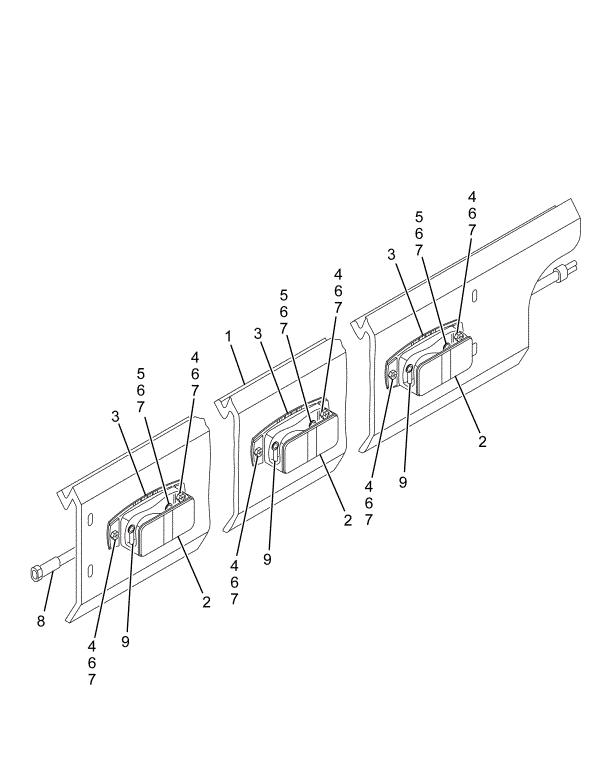

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL LEFT W/LIGHTS AND N/BLOCK HEATER PLUG IN | 1 | 3553379C2 |
| LIGHT CLEARANCE OR MARKER CAB SKIRT LIGHT GROTE | 3 | 3553924C91 |
| LIGHT CLEARANCE OR MARKER SKIRT LIGHT GUARD | 3 | 3573227C1 |
| SCREW * #10-24 X 5/8 PHIL FLAT HEAD MS, 18-8 SST | 6 | 3573240C1 |
| SCREW * #10-24 X 3/4 PHIL PAN HEAD MS, 18-8 SST | 6 | 3573242C1 |
| WASHER * #10 FLAT WASHER, 18-8 SST | 9 | 3573243C1 |
| NUT, SPECIAL LOCK STAINLESS STEEL #10 UNC | 12 | 3573244C1 |
| HARNESS, ELECTRICAL CAB WIRING BODY ACCESSORY CAB SKIRT ASSEMBLY | 1 | 3573245C1 |
| CLAMP, CABLE BLACK NYLON | 3 | 3573247C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
