3553384C92
PANEL, LEFT CAB SKIRT W/LIGHTS AND BLOCK HEATER PLUG INCH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$339.95
$407.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, LEFT CAB SKIRT W/LIGHTS AND BLOCK HEATER PLUG IN
Package Dimensions
39.5 x 10.0 x 6.5 in
Weight
9.02 lbs

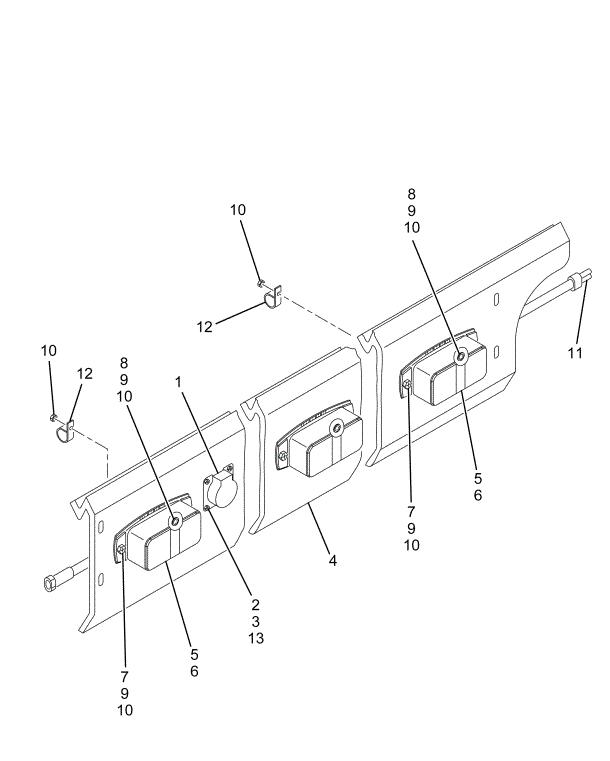

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HOUSING, TERMINAL WEATHER PROOF | 1 | 1655253C1 |
| NUT, SPECIAL LOCK STAINLESS STEEL #10 UNC | 12 | 3573244C1 |
| HARNESS, ELECTRICAL CAB WIRING BODY ACCESSORY CAB SKIRT ASSEMBLY | 1 | 3573245C1 |
| CLAMP, CABLE BLACK NYLON | 3 | 3573247C1 |
| SCREW, MACHINE PAN HEAD #8-32 X 3/4" | 4 | 40226R1 |
| NUT, HEXAGON MACHINE STAINLESS STEEL #8 UNC | 4 | 27296R1 |
| WASHER, LOCK | 4 | 27306R1 |
| PANEL LEFT W/LIGHTS AND W/BLOCK HEATER PLUG IN | 1 | 3553383C2 |
| LIGHT CLEARANCE OR MARKER CAB SKIRT LIGHT GROTE | 3 | 3553924C91 |
| LIGHT CLEARANCE OR MARKER SKIRT LIGHT GUARD | 3 | 3573227C1 |
| SCREW * #10-24 X 5/8 PHIL FLAT HEAD MS, 18-8 SST | 6 | 3573240C1 |
| SCREW * #10-24 X 3/4 PHIL PAN HEAD MS, 18-8 SST | 6 | 3573242C1 |
| WASHER * #10 FLAT WASHER, 18-8 SST | 9 | 3573243C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
