2032657C91

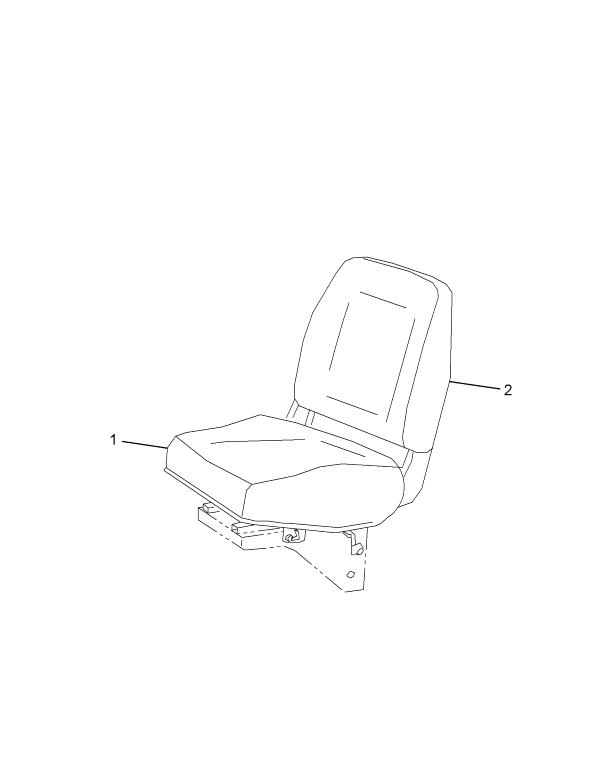

SEAT, LOW BACK PASSENGER GRAY VINYL W/HEADREST
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$749.95
$899.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, LOW BACK PASSENGER GRAY VINYL W/HEADREST
Weight
89.19 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT GRAY VINYL | 1 | 1698650C91 |
| CUSHION, LOW BACK SEAT BACK GRAY VINYL W/HEADREST | 1 | 1698646C91 |
| BASE, MOUNTING SEAT LOWER | 1 | 1655447C1 |
| KIT, UPPER SEAT HOUSING | 1 | 1694367C91 |
| ARM ASSEMBLY SEAT ADJUSTING LOWER | 1 | 1655449C1 |
| KIT, LOWER SEAT HOUSING W/LINK | 1 | 1694029C91 |
| ROD, SEAT TORQUE | 1 | 594649C1 |
| PIVOT, WEIGHT ADJUSTMENT RIGHTHAND THREAD | 1 | 594647C1 |
| PIVOT, WEIGHT ADJUSTMENT RIGHTHAND THREAD | 1 | 594648C1 |
| KNOB ASSEMBLY WEIGHT ADJUSTER | 1 | 594643C1 |
| LINK, SEAT SUPPORT | 4 | 594653C1 |
| BRACKET, SUPPORT SEAT SPRING | 1 | 1655454C1 |
| GEAR, SEAT ADJUSTER | 1 | 594587C1 |
| PIVOT, HEIGHT ADJUSTMENT | 1 | 594651C1 |
| BRACKET, SEAT MOUNTING | 1 | 594595C1 |
| GEAR, SEAT ADJUSTER | 1 | 594650C1 |
| SHAFT, SEAT CONTROL KNOB | 1 | 594659C1 |
| KNOB, SEAT ADJUSTER | 1 | 594658C1 |
| PRODUCT GRAPHICS DECAL | 1 | 594657C1 |
| SPRING, COMPRESSION SEAT | 2 | 1655456C1 |
| PIN PIVOT SEAT | 1 | 1655458C1 |
| BUMPER SEAT FR | 1 | 594675C1 |
| CHANNEL SEAT SUPPORT | 2 | 594656C1 |
| KIT, SEAT BACK LUMBAR ADJUSTER HANDLE | 1 | 1696900C91 |
| REST, HEAD GRAY VINYL | 1 | 1698268C91 |
| ARMREST GRAY VINYL LEFT AND RIGHT HAND | 1 | 2031239C1 |
CROSS REFERENCES
- SEARS M SA12670.2T2
- SEARS M SA12670.2T2
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
