2034308C91

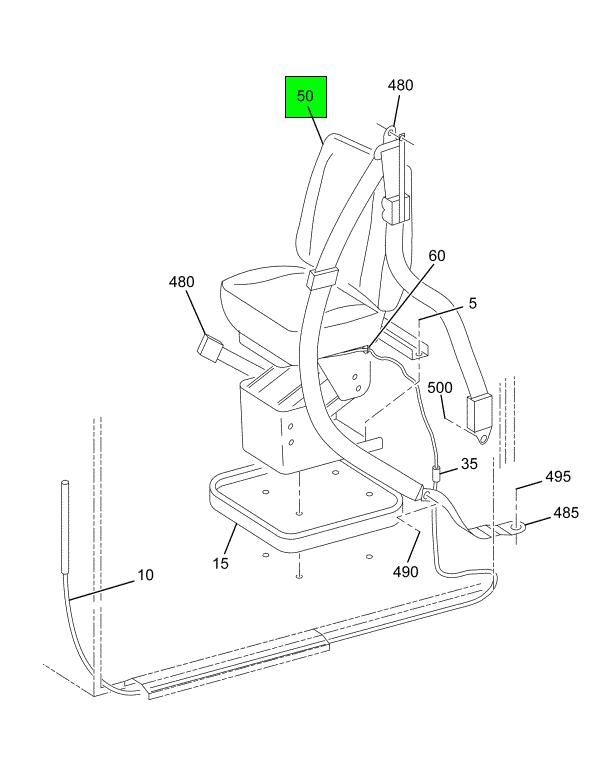

SEAT, HIGH BACK DRIVERS BROWN MORDURA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$639.95
$767.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, HIGH BACK DRIVERS BROWN MORDURA
Weight
87.18 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| PEDESTAL, SEAT | 1 | 1696989C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2502294C1 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| ARMREST BROWN MORDURA LEFT HAND | 1 | 1695619C1 |
| PAD, SEAT CRASH | 1 | 1698956C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| ARMREST BROWN MORDURA RIGHT HAND | 1 | 2030149C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685749C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
