6040166C92

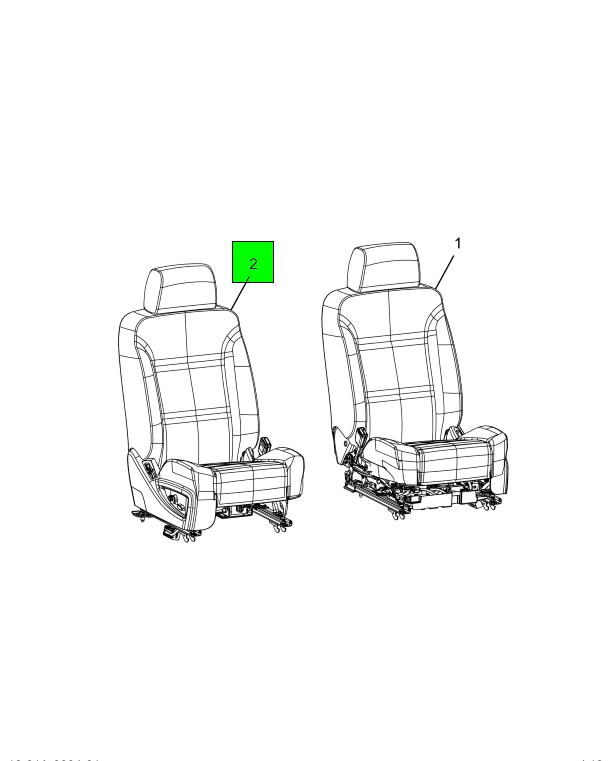

RIGHT FRONT SEAT ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,499.95
$1,799.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT ASSEMBLY, FRONT RIGHT
Weight
80 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ELEMENT, SEAT CUSHION BOTTOM HEAT | 1 | 6041720C1 |
| KNOB, PASSENGER SIDE, RECLINER | 1 | 6041742C1 |
| FOAM PAD, SEAT BOTTOM | 1 | 6041719C1 |
| FRAME ASSEMBLY, BACK, LEFT /RIGHT HAND WITH POWER RECLINE | 1 | 6041755C1 |
| HEADREST, TWO WAY CLOTH BLACK | 1 | 6041750C1 |
| ELEMENT, SEAT CUSHION BACK HEAT | 1 | 6041721C1 |
| SWITCH ASSEMBLY, PASSENGER TWO WAY | 1 | 6041737C1 |
| FRONT SEAT CUSHION COVER ASSEMBLY | 1 | 6041623C1 |
| FRAME ASSEMBLY, CUSHION, PASSENGER, TWO WAY POWER | 1 | 6041764C1 |
| FRONT SEAT BACK COVER ASSEMBLY | 1 | 6041622C1 |
| BUCKLE, SEAT BELT, RIGHT HAND | 1 | 6041723C1 |
| SCREW, SIDESHEILD, PLASTICE TO FRAME /WIRE TROX HEAD | 1 | 6041783C1 |
| GUIDE ASSEMBLY, LEFT HAND HEAD REST SEMI LOCKING | 1 | 6041714C1 |
| RETAINER, OUTER FINISH PANEL, RIGHT HAND | 1 | 6041773C1 |
| BRACKET, RECLINER COVER, INNER BACK, PASS | 1 | 6041780C1 |
| KNOB, PASSENGER SIDE, POWER LUMBAR | 1 | 6041743C1 |
| BRACKET, LUMBAR, TWO WAY LEFT HAND | 1 | 6041760C1 |
| SPRING, FRONT SEAT CUSHION SUPPORT | 1 | 6041768C1 |
| MODULE, CUSHION HEAT | 1 | 6041711C1 |
| SIDE SHIELD, INNER BACK, RIGHT HAND | 1 | 6041730C1 |
| SIDE SHIELD, OUTER BACK, RIGHT HAND, POWER TWO WAY | 1 | 6041728C1 |
| BRACKET, FRONT SEAT WIRING HARNESS | 1 | 6041769C1 |
| BOLT, SEAT BACK /RECLINER TO CUSHION | 4 | 6041781C1 |
| KNOB, PASSENGER SIDE, ADJUSTER | 1 | 6041741C1 |
| HARNESS ASSEMBLY, RH SEAT BOTTOM | 1 | 6041710C1 |
| LUMBAR, TWO WAY, POWER | 1 | 6041759C1 |
| SPACER, FRONT SEAT ADJUSTER | 1 | 6041767C1 |
| BRACKET, LUMBAR, TWO WAY RIGHT HAND | 1 | 6041761C1 |
| GUIDE ASSEMBLY, RH HEAD REST LOCKING | 1 | 6041715C1 |
| COVER, TRACK, REAR INNER BACK | 1 | 6041735C1 |
| HARNESS ASSEMBLY, RH SEAT BACK | 1 | 6041705C1 |
| STOP, FRONT SEAT ADJUSTER | 2 | 6041766C1 |
| FOAM PAD, SEAT BACK | 1 | 6041718C1 |
CROSS REFERENCES
- ESSEX 84549700
- ESSEX 84549700
- GMVISTA 84549700
- GMVISTA 84549700
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
