6040182C92

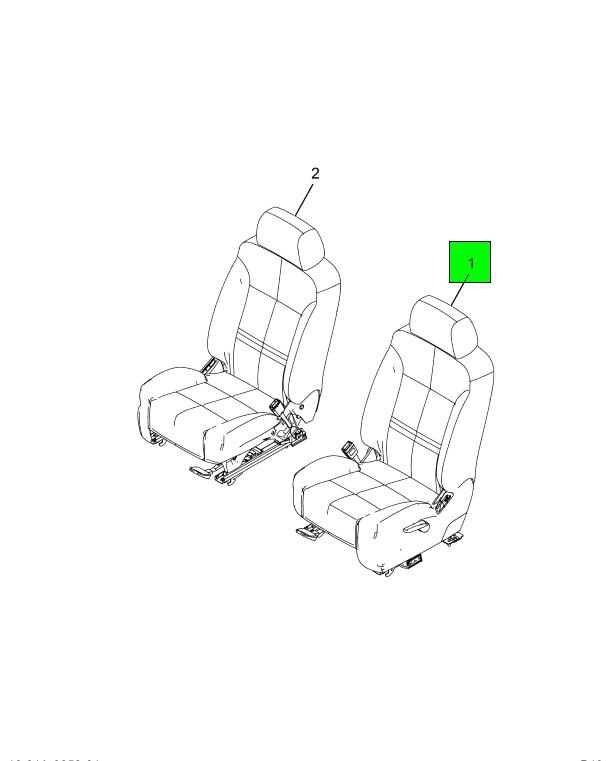

SEAT ASSEMBLY, FRONT LEFT VINYL
Navistar International®
AVAILABLE
1 is currently available
Ships within 6-8 business days
$1,299.95
$1,559.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT ASSEMBLY, FRONT LEFT VINYL
Weight
72.8486 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HEADREST, TWO WAY VINYL DARK GRAY | 1 | 6041713C1 |
| HARNESS ASSEMBLY, LEFT HAND SEAT BOTTOM | 1 | 6041706C1 |
| BOLT, SEAT BACK /RECLINER TO CUSHION | 4 | 6041781C1 |
| FOAM PAD, SEAT BOTTOM | 1 | 6041719C1 |
| COVER, TRACK, REAR INNER BACK | 1 | 6041735C1 |
| FRONT SEAT BACK COVER ASSEMBLY | 1 | 6041342C1 |
| SIDE SHIELD, INNER BACK, LEFT HAND | 1 | 6041729C1 |
| SPRING, FRONT SEAT CUSHION SUPPORT | 1 | 6041768C1 |
| FOAM PAD, SEAT BACK | 1 | 6041718C1 |
| BRACKET, RECLINER COVER, OUTER BACK, DRIVER, MANUAL | 1 | 6041777C1 |
| HANDLE, LEFT HAND RECLINER | 1 | 6041732C1 |
| HANDLE, ADJUST FORE/AFT | 1 | 6041734C1 |
| SUSPENSION, ASSEMBLY, FIXED | 1 | 6041757C1 |
| SIDE SHIELD, OUTER BACK, LEFT HAND, MANUAL | 1 | 6041724C1 |
| SCREW, SIDESHEILD, PLASTICE TO FRAME /WIRE TROX HEAD | 1 | 6041783C1 |
| FRAME ASSEMBLY, BACK, LEFT HAND WITH MANUAL RECLINE | 1 | 6041754C1 |
| SCREW, PLASTIC TAPPING- 5 X 2.25 X 9 TRACK HANDLE | 1 | 6041784C1 |
| SPACER, FRONT SEAT ADJUSTER | 1 | 6041767C1 |
| BUCKLE, SEAT BELT, WITH FELT, LEFT HAND /RH | 1 | 6041722C1 |
| COVER, CUSHION BASE, VINYL LEFT HAND TRIM | 1 | 6041716C1 |
| RECLINER, MANUAL REMOTE RELEASE LEFT HAND | 1 | 6041744C1 |
| FRAME ASSEMBLY, CUSHION, DRIVER, TWO WAY MANUAL | 1 | 6041762C1 |
| BRACKET, OUTER FINISH PANEL, LEFT HAND MANUAL | 1 | 6041774C1 |
| STUD, M5, SIDESHEILD/MANUAL LUMBAR, REMOTE RELEASE, BRACKET TO RECLINER | 2 | 6041782C1 |
| GUIDE ASSEMBLY, RH HEAD REST LOCKING | 1 | 6041715C1 |
| GUIDE ASSEMBLY, LEFT HAND HEAD REST SEMI LOCKING | 1 | 6041714C1 |
| BRACKET, RECLINER COVER, INNER BACK, DRIVER | 1 | 6041779C1 |
CROSS REFERENCES
- ESSEX 84549576
- ESSEX 84549576
- GMVISTA 84549576
- GMVISTA 84549576
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
