3509307C5

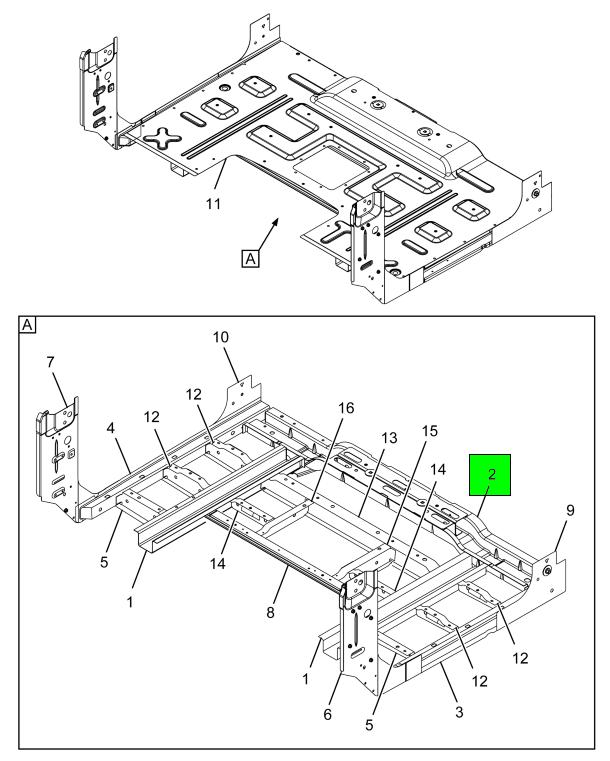

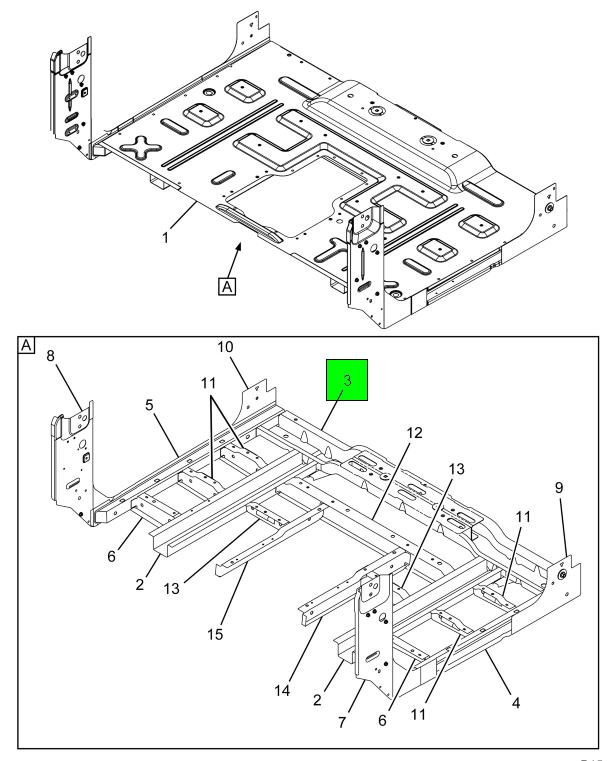

SILL ASSY ASSY REAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SILL ASSY ASSY REAR
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REINFORCEMENT REAR-WAFFLE BRACKET | 1 | 3513378C1 |
| REINFORCEMENT REAR ASSEMBLY | 1 | 3510126C2 |
| SILL CAB FLOOR OR COWL, REAR | 1 | 3509306C4 |
| NUT, WELD | 2 | 3532734C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
