1618789C91

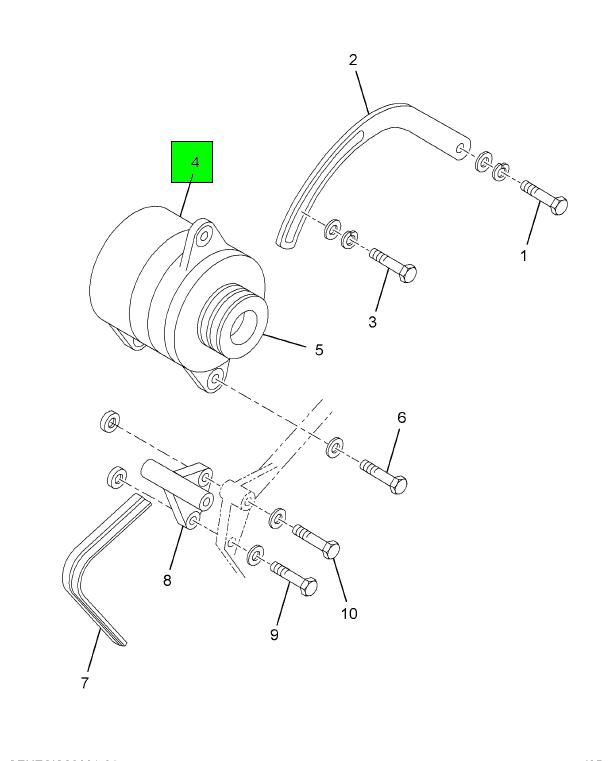

ALTERNATOR 4600 12 VOLT 105 AMP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$959.95
$1,151.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
ALTERNATOR 4600 12 VOLT 105 AMP
Weight
28.95 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING ROLLER ALTERNATOR | 1 | 597714C91 |
| ROTOR, ASSEMBLY A/C GENERATOR | 1 | 465427C91 |
| RETAINER BEARING ALTERNATOR | 1 | 597713C1 |
| BEARING, ASSEMBLY BALL | 1 | 466225C91 |
| SPACER, FAN | 1 | 461049C1 |
| FAN ASSEMBLY, GENERATOR | 1 | 1663006C1 |
| RECTIFIER ASSEMBLY NEG | 1 | 1677043C91 |
| RECTIFIER ASSEMBLY POSITIVE | 1 | 1677042C91 |
| BUSHING, INSULATING | 2 | 461063C1 |
| BUSHING, INSULATION | 1 | 461061C1 |
| BUSHING, INSULATION | 1 | 461062C1 |
| BUSHING, MOUNTING AIR CONDITIONER OR ALTERNATOR | 1 | 461060C1 |
| REGULATOR ALTERNATOR | 1 | 1663007C1 |
| SEAL OIL ALTERNATOR SRE HOUSING. | 1 | 597715C1 |
| SEAL OIL ALTERNATOR ROTOR | 1 | 597716C1 |
| SEAL OIL ALTERNATOR DE HOUSING | 1 | 597717C1 |
CROSS REFERENCES
- PRESTOL A0014625JC
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
