422246001
BOX, BATTERY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,499.95
$1,799.94
This is an oversize product. Additional shipping fees may apply.
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
BOX ASSY BATT 2-8D
Weight
150.31 lbs

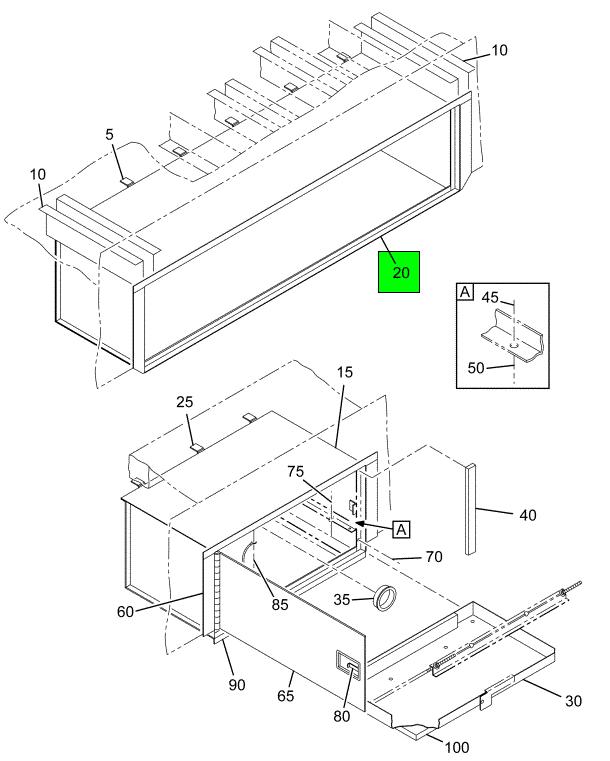

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BOX, BATTERY WITHOUT DOOR | 1 | 422245001 |
| FR ASSEMBLY 54" LUGGAGE BOX W/DOOR | 1 | 415875006 |
| BRACKET BATTERY BOX | 3 | 422260001 |
| END, STRIKER PLATE LUGGAGE BOX | 2 | 415888001 |
| TRAY, BATTERY BOX | 1 | 422250001 |
| STOP, BATTERY BOX | 2 | 434038001 |
| STOP, BATTERY BOX | 2 | 431801001 |
| BOLT HEXAGON HEAD CAP SCREW 1/4" X 3/4" UNC | 12 | 91109100 |
| WASHER, SPLIT LOCK ZINC PLATED 1/4" | 12 | 120380 |
| WASHER, SPLIT LOCK ZINC PLATED 1/4" | 12 | 91402700 |
| NUT, HEXAGON PLATED 1/4" UNC | 12 | 120375 |
| NUT, HEXAGON PLATED 1/4" UNC | 16 | 90903200 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
