3626809C93
COVER ASSEMBLY, BATTERY BOX ALUMINUM 30"
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
COVER ASSEMBLY, BATTERY BOX ALUMINUM 30"

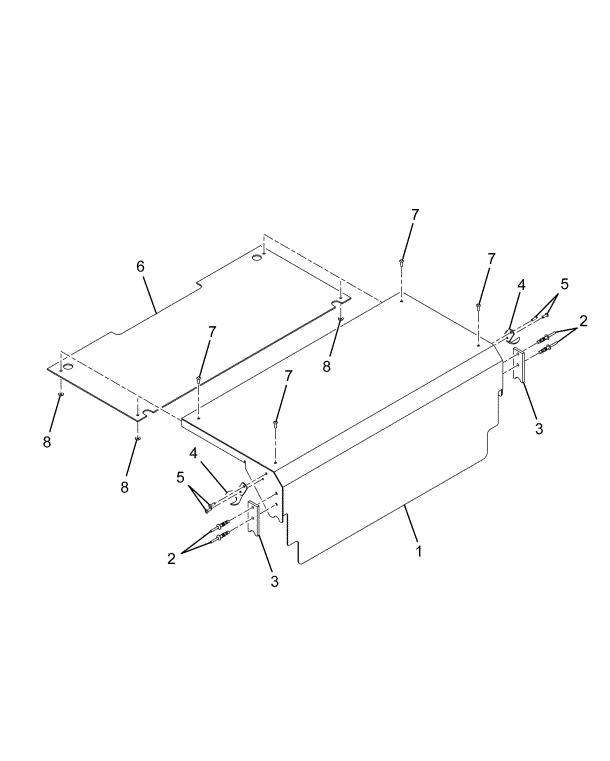

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, WELDMENT ALUMINUM 30" BATTERY BOX | 1 | 3626802C3 |
| PIN HUCK BOLT, MAGNA-LOK 1/4 D.X 3/8 MAXGRIP | 4 | 1660515C1 |
| PIN HUCK BOLT, MAGNA-LOK 1/4 D.X 3/8 MAXGRIP | 4 | 3513001C1 |
| SHIELD, BATTERY BOX | 2 | 2001524C2 |
| RETAINER, BATTERY COVER RUBBER HOOK | 2 | 777937C1 |
| RIVET, BLIND 3/16" | 4 | 3589877C1 |
| SHIELD, BATTERY BOX COVER PLASTIC 30" | 1 | 3613701C3 |
| RIVET, STEEL BLIND 3/16" .214-.437 GRIP | 4 | 2040956C1 |
| WASHER, FLAT 0.203 X 0.5 X 0.041 | 4 | 16547R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
