3560267C92
HARNESS, ELECTRICAL ANITLOCK BRAKES
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$124.95
$149.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL ANITLOCK BRAKES
Package Dimensions
9.4 x 10.3 x 1.7 in
Weight
0.68 lbs

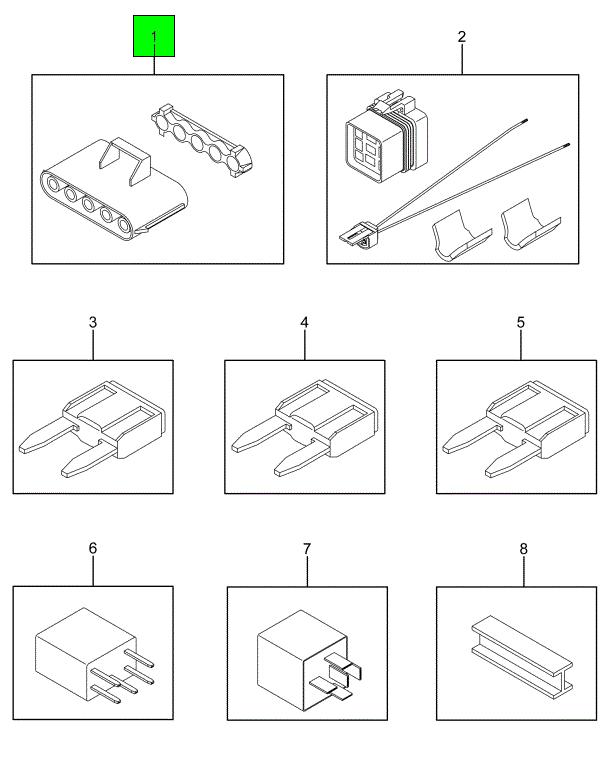

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CONNECTOR, BODY FUSE /CIRCUIT BREAKER BLOCKS FOR NGV PDC | 1 | 3534572C1 |
| CONNECTOR, BODY FUSE /CIRCUIT BREAKER BLOCKS FOR NGV PDC | 1 | 3545599C91 |
| TERMINAL, CABLE FEMALE | 1 | 1661227C1 |
| CONNECTOR, BODY MICRO- RELAY BLOCK ASSEMBLY FOR NGV PDC | 1 | 3545598C91 |
| TERMINAL, CABLE 280 SERIES FEMALE (1.0-.8 MM) | 1 | 2506123C1 |
| TERMINAL, CABLE 280 SERIES FEMALE (1.0-.8 MM) | 1 | 3515517C1 |
| SPACER | 5 | 3515312C1 |
| CONNECTOR, BODY 38 WAY FEMALE | 1 | 3535306C1 |
| TERMINAL, CABLE CONN TERMINAL | 12 | 3535303C1 |
| PLUG, SEALING CABLE TERMINAL BLUE | 12 | 3535424C1 |
| CONNECTOR, BUS | 1 | 3543733C1 |
| CONNECTOR, 5 WAY BODY MALE | 1 | 1661375C2 |
| TERMINAL, CABLE 14 GAUGE | 5 | 2033816C1 |
| PLUG, SEALANT LOOSE PIECE | 4 | 589390C1 |
| PLUG, SEALANT LOOSE PIECE | 1 | 589391C1 |
| CONNECTOR, BODY 24 WAY FEMALE | 1 | 3558026C1 |
| TERMINAL, CABLE AMP JUNIOR- POWER- TIMER 3 POSITION | 4 | 3509874C1 |
| SEAL, CABLE TERMINAL | 4 | 3509903C1 |
| CONNECTOR, BODY STRAIN RELIEF 36 WAY GRAY 100 WATT | 1 | 3533832C1 |
| TERMINAL, CABLE FEMALE 100 WATT | 2 | 3517243C1 |
| CONNECTOR, BUS 7 WAY | 1 | 2006789C1 |
| TERMINAL, CABLE FEMALE | 1 | 1661209C1 |
| TERMINAL, CABLE 5/16" EYELET | 1 | 2020632C1 |
| TERMINAL, CABLE FEMALE MINIFUSE | 1 | 3573311C1 |
| CONNECTOR, BODY RELAY BLOCKS FOR NGV PDC | 1 | 3676715C1 |
| CONNECTOR, BODY RELAY BLOCKS FOR NGV PDC | 1 | 3545600C91 |
| TERMINAL, CABLE FEMALE | 1 | 1661226C1 |
| TERMINAL, CABLE FEMALE | 2 | 1661224C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
