3915753C95
LIGHT HEAD AERO COMPOSITE ASSEMBLY L
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
LIGHT HEAD AERO COMPOSITE ASSEMBLY L

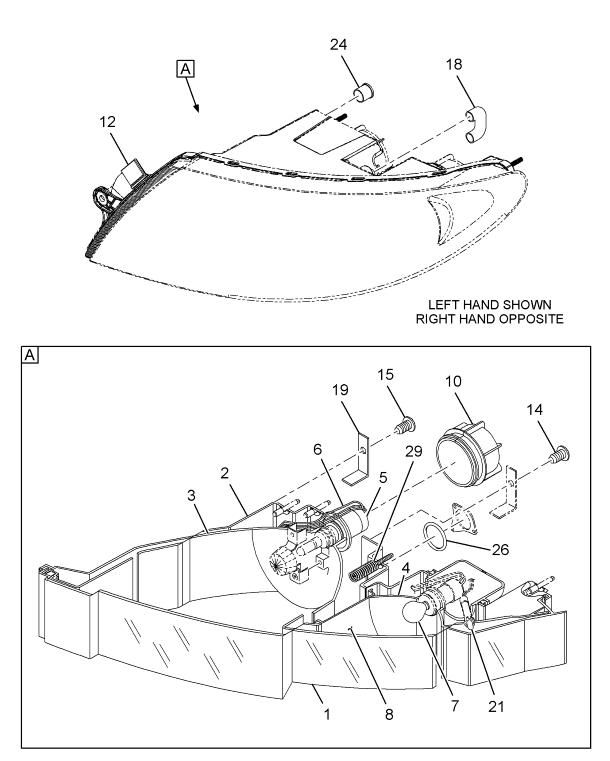

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| LENS LH | 1 | 2610138C91 |
| COVER, HEAD LIGHT BULB SOCKET | 1 | 2586076C91 |
| LOCK DUAL | 1 | 3545929R1 |
| LOCK DUAL | 1 | 2610162C1 |
| SCREW ASSEMBLY HEAD LIGHT ADJUSTER SHORT | 1 | 2587315C91 |
| SCREW, HEAD LIGHT ADJUSTER | 1 | 2610164C1 |
| TUBE, VENT | 1 | 2610168C1 |
| TUBE VENT | 1 | 2610165C1 |
| BASE, LH | 1 | 2610141C91 |
| LAMP BULB | 1 | 2610166C1 |
| CAP, VENT | 1 | 2610169C1 |
| RING ,O GASKET | 1 | 2610167C1 |
| SPRING, | 1 | 2610147C1 |
| REFLECTOR, LH | 1 | 2610143C91 |
| BEZEL ,SUB- REFLECTOR LH | 1 | 2610145C91 |
| LAMP, HEADLAMP BULB, H9 | 1 | 2610146C1 |
| HARNESS WIRING LH | 1 | 2610149C91 |
| LAMP TRUNNION BULB | 1 | 2610150C1 |
| REFLECTOR ,REFLEX, LH | 1 | 2610161C91 |
| SHIELD, BULB | 1 | 2610163C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
