4062417C92
LIGHT, HEAD, CHROME BEZEL, LEFT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$859.95
$1,031.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
LIGHT, HEAD, CHROME BEZEL, LEFT HAND

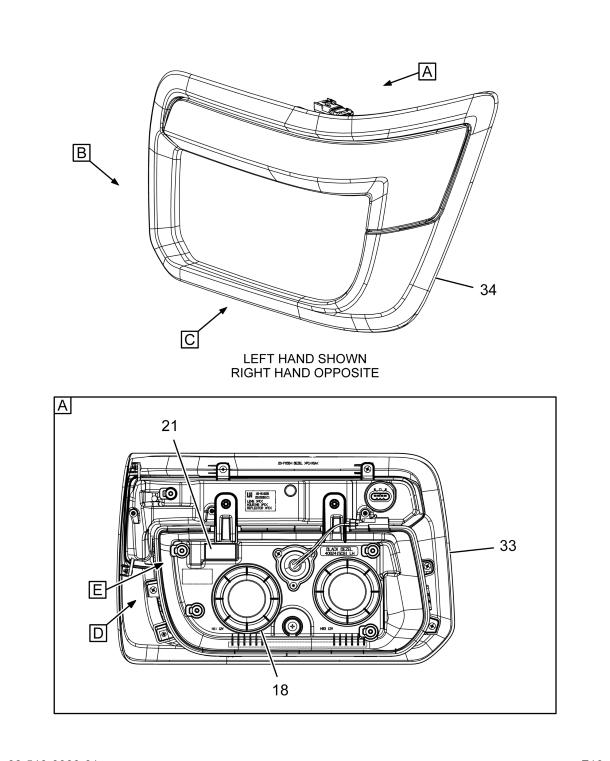

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SCREW, MODULE TURN SIGNAL | 12 | 2597355C1 |
| COVER, BULB SOCKET | 2 | 2515353C91 |
| LAMP LOW BEAM BULB | 1 | 2604790C1 |
| BULB, HEADLAMP | 1 | GE9005 |
| LENS GORE-TEX PATCH | 1 | 2608312C91 |
| LAMP, ASSEMBLY, LEFT HAND TURN | 1 | 2515351C91 |
| CLIP, RETAINING | 2 | 2515344C1 |
| NUT, SPEED | 2 | 2515348C1 |
| WASHER, LOCKING | 8 | 2515347C1 |
| SCREW, MOUNTING | 8 | 2515346C1 |
| BEZEL, OUTER, CHROME, LEFT HAND | 1 | 2515837C1 |
| LIGHT, HEAD, LEFT HAND | 1 | 2515409C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
