441155002
BAR, LIGHT HEAD LIGHT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
LIGHT HEADLIGHT*BAR ASSY FE

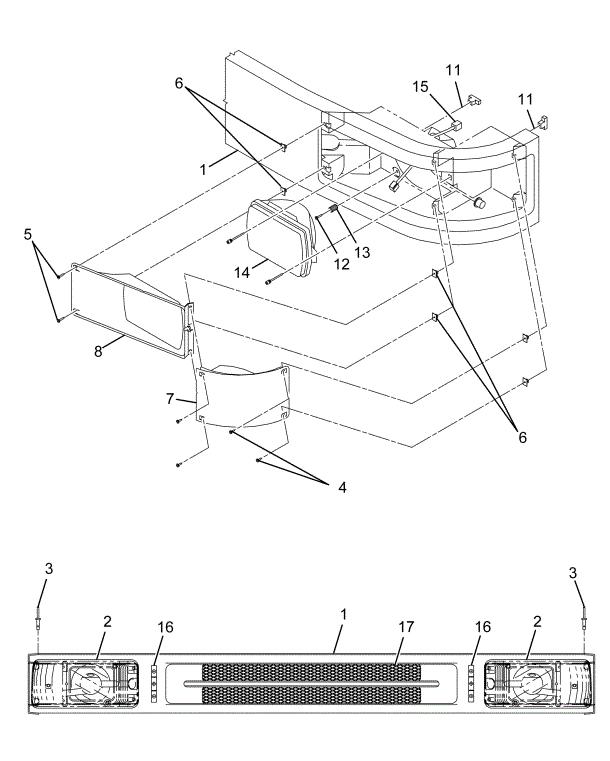

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BAR, LIGHT HEAD LIGHT WINTER WHITE | 1 | 441153002 |
| HEAD LAMP ADJUSTMENT SCREW ASSEMBLY | 4 | 500565C91 |
| SCREW, SPECIAL PAN HEAD HIGH- LOW THREAD | 2 | 473151C1 |
| SPRING, HEADLAMP | 2 | 500556C1 |
| LIGHT, HALOGEN HEAD | 2 | 2006091C91 |
| HARNESS, ELECTRICAL HEAD LIGHT | 2 | 441561001 |
| BRACKET HEAD LIGHT BAR | 2 | 441158001 |
| GUARD, HEAD LIGHT STONE | 1 | 441552001 |
| BRACKET HEAD LIGHT BAR OUTBOARD | 2 | 431258001 |
| RIVET, MAGNALOCK 1/4" | 4 | 2040959C1 |
| RIVET, MAGNALOCK 1/4" | 4 | 424329001 |
| SCREW, SELF TAPPING | 1 | 2008450C1 |
| SCREW, PAN HEAD #10 X 3/4" | 4 | 26627R1 |
| NUT-PUSH IN | 12 | 1689769C1 |
| LIGHT, TURN SIGNAL LEFT, FRONT | 1 | 1661761C93 |
| LIGHT, TURN SIGNAL RIGHT, FRONT | 1 | 1661762C93 |
| BEZEL, RIGHT HEAD LIGHT | 1 | 1661764C1 |
| BEZEL, LEFT HEAD LIGHT | 1 | 1661763C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
