2040721C94

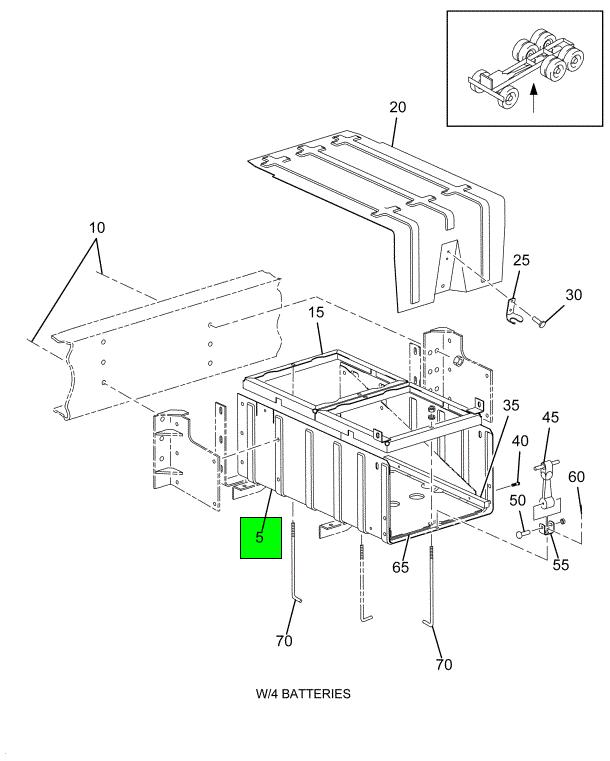

TRAY, BATTERY W/JUMP START STUD
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
TRAY, BATTERY W/JUMP START STUD
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TRAY, BATTERY BATTERY BOX | 1 | 531092C4 |
| SUPPORT, BATTERY TRAY | 1 | 540173C2 |
| BRACKET, JUMP START STUD | 1 | 2012526C1 |
| BRACKET, MOUNTING AIR TANK | 2 | 3543436C2 |
| BOLT 3/8" X 3/4" | 11 | 24839R1 |
| NUT, LOCK | 11 | 9413979 |
| BRACKET, MOUNTING BATTERY BOX | 1 | 531095C4 |
| BOLT 3/8" X 1" | 8 | 24840R1 |
| BRACKET, MOUNTING BATTERY BOX | 1 | 531099C5 |
| BOLT 3/8" X 1 1/4" UNC | 2 | 140483H |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
