1897459C93
KIT, TURBOCHARGER LP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
KIT, TURBOCHARGER LP
Engine Platform
V152 2010 MaxxForce 7
Weight
34.9998 lbs

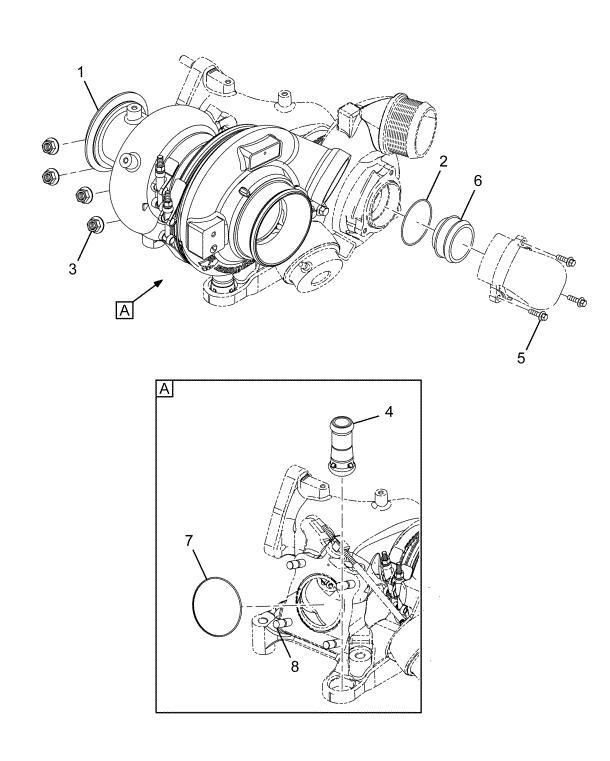

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BOLT M6 X 20 | 3 | 1817817C1 |
| TURBOCHARGER ASSEMBLY LP | 1 | 1889568C3 |
| NUT, FLANGE HD SPIRALOCK THREAD M10 X 1.25 | 4 | 1841574C2 |
| TUBE LP TRBO DRAIN 97.30MM | 1 | 1881103C1 |
| SEAL LP TURBOCHARGER | 1 | 1881990C1 |
| RING EXHAUST SEALING | 1 | 1882823C1 |
| STUD TURBOCHARGER | 4 | 1890259C1 |
| SEAL O-RING | 1 | 1890998C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
