3815085C1
SUPPORT ASSEMBLY, MUFFLER VERTICAL VERTICAL
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SUPPORT ASSEMBLY, MUFFLER VERTICAL VERTICAL

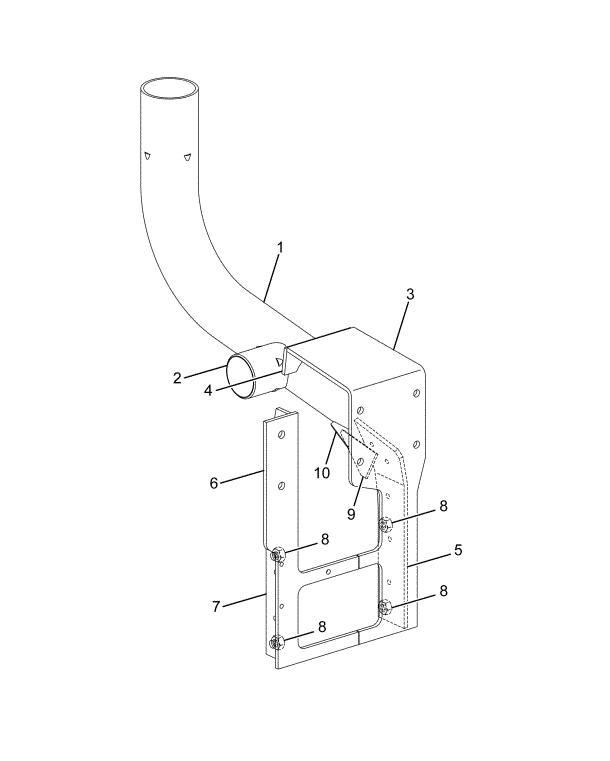

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE STANCHION BASE | 1 | 3790768C3 |
| PLATE STANCHION SUPPORT | 1 | 3817435C1 |
| PIPE SIDE INLET | 1 | 3790765C4 |
| BRACE, MUFFLER SUPPORT U/C H/V T/PIPE SUPPORT-CLN CA-MRD | 1 | 3815150C1 |
| PLATE STANCHION SUPPORT | 1 | 3790766C1 |
| BRACE, MUFFLER SUPPORT VERTICAL TAILPIPE STANCHION | 1 | 3815153C1 |
| BRACE, MUFFLER SUPPORT AND BATTERY BOX SUPPORT | 1 | 3815187C1 |
| BRACE, MUFFLER SUPPORT VERTICAL TAILPIPE STANCHION | 1 | 3815173C1 |
| NUT, HEXAGON 15 PACKAGE M16 | 4 | 30756R1 |
| PLATE STANCHION SUPPORT | 1 | 3817389C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
