4061692C3
AFTERTREATMENT DEVICE, INTERNATIONAL MED ENGINE, CAT ASSEMBLY RIGHT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
AFTERTREATMENT DEVICE, INTERNATIONAL MED ENGINE, CAT ASSEMBLY RIGHT HAND
Engine Platform
I783 2010 MaxxForce BB 11L & 13L

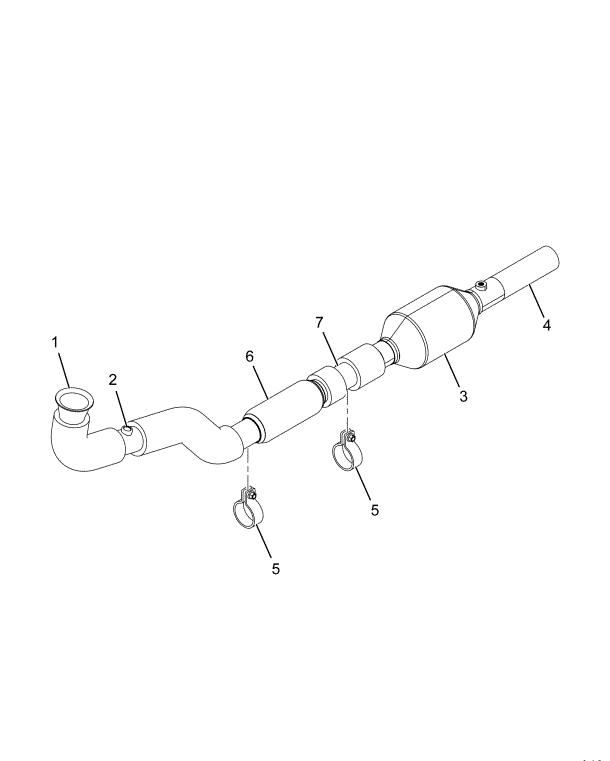

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE EXHAUST MANIFOLD RIGHT HAND | 1 | 4061697C2 |
| PIPE, COUPLING ,O2 PORT | 1 | 4055937C1 |
| AFTERTREATMENT DEVICE, INTERNATIONAL MED ENGINE, CAT | 1 | 4055734C2 |
| PIPE, EXHAUST, POST-CAT | 1 | 4055733C1 |
| SUPPORT CLAMP ASSEMBLY | 2 | 4055535C2 |
| PIPE ,DECOUPLER, BELLOWS 64X225 | 1 | 4069095C1 |
| PIPE, EXHAUST, PRE-CAT | 1 | 4069114C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
