3627853C4
SUPPORT, 3- BATTERY 12" RAIL STANCHION
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$929.95
$1,115.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SUPPORT, 3- BATTERY 12" RAIL STANCHION
Weight
159.9994 lbs

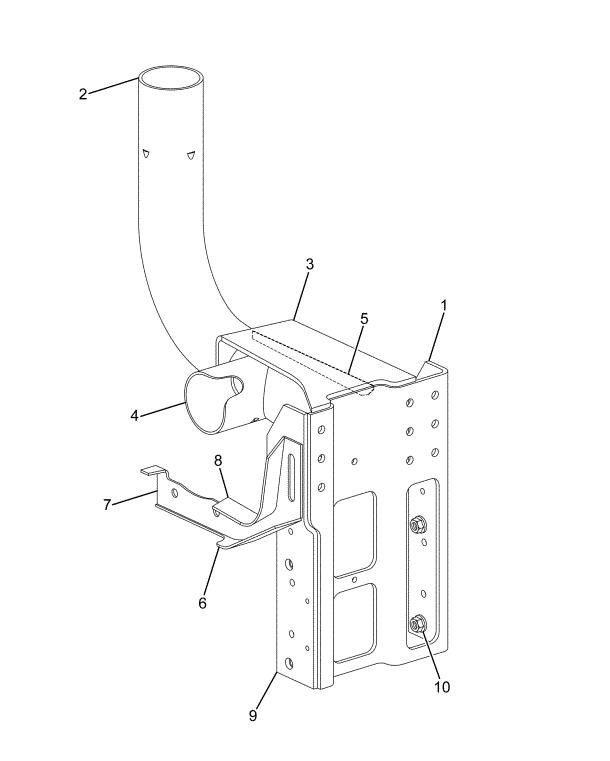

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SUPPORT 3 BATTERY 12" RAIL STANCHION BASE | 1 | 3627852C3 |
| NUT, HEXAGON M16 | 4 | 3535554C1 |
| SUPPORT VERTICAL TAILPIPE STANCHION PIPE | 1 | 3611983C2 |
| SUPPORT VERTICAL TAILPIPE STANCHION TOP PLATE | 1 | 3611984C1 |
| SUPPORT VERTICAL TAILPIPE * STANCHION INLET PIPE | 1 | 3619171C2 |
| SUPPORT VERTICAL TAILPIPE STANCHION REINFORCEMENT | 1 | 3611986C1 |
| BRACE, MUFFLER SUPPORT STANCHION ATD BRACKET | 1 | 3627845C1 |
| BRACE, MUFFLER SUPPORT STANCHION * ATD BRACKET | 1 | 3627846C2 |
| BRACE, MUFFLER SUPPORT STANCHION ATD BRACKET | 1 | 3627847C2 |
| BRACE, MUFFLER SUPPORT LEFT FLANGE * 12 | 1 | 3627848C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
