4071942C91
TANK, DEF, ASSEMBLY, 23 GALLON, BRIGHT, LONESTAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,899.95
$5,879.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
TANK, DEF, ASSEMBLY, 23 GALLON, BRIGHT, LONESTAR

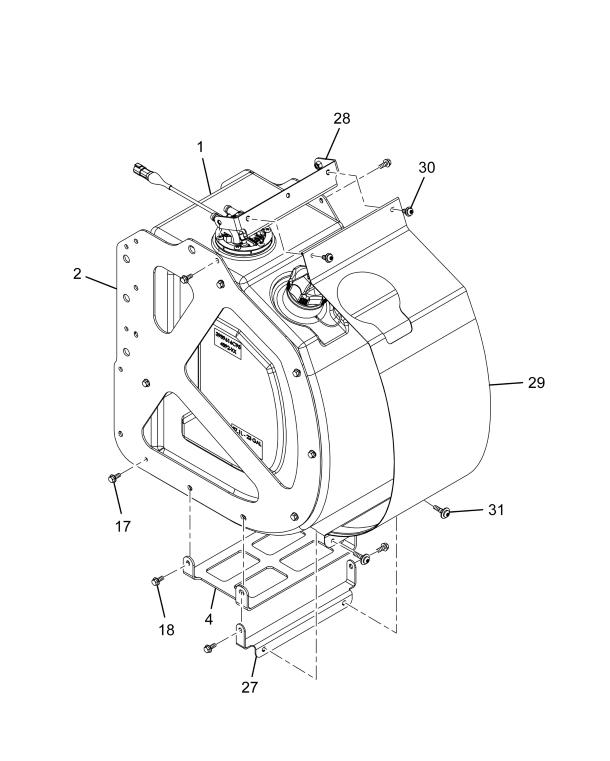

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, LOCK, 1/4" REG STEEL /ZNC 1/4" | 4 | 120380 |
| BOLT, TORX M8-1.25 X 20 | 2 | 3625050C2 |
| BOLT, SEMS M8 X 1.25-35MM | 2 | 3804756C1 |
| STRAPASM, CABLE | 3 | 3820913C91 |
| TUBE DEF PRESSURE LINE | 1 | 3876681C2 |
| TUBE, DEF SUCTION LINE, HEATED | 1 | 3989652C1 |
| SPACER 7MM | 4 | 3804444C1 |
| TUBE, DEF RETURN | 1 | 3989653C1 |
| BOLT, HEXAGON FLANGE HEAD METRIC M6 X 16 MM | 4 | 40235R1 |
| BOLT, HEXAGON HEAD FLANGE M8 X 16 TMS | 12 | 40292R1 |
| SUPPORT, SIDE PANEL, DEF TANK | 2 | 4051872C1 |
| SUPPORT, 23 GAL DEF TANK, BOTTOM | 1 | 4053276C1 |
| CLAMP, HOSE COOLER MOUNTING 24 MM DIAMETER 15 MM WIDE 5/8" INSIDE DIAMETER | 2 | 2022866C1 |
| SUPPORT, 23 GAL DEF TANK, REAR ASSEMBLY | 1 | 4058858C1 |
| SUPPORT, 23 GAL DEF TANK, REAR ASSEMBLY | 1 | 4058988C1 |
| TANK,DEF | 1 | 4061207C91 |
| SUPPORT, SUPPLY MODULE, 23 GAL DEF TANK, ASSEMBLY | 1 | 4062739C1 |
| HARNESS,JUMPER , LONESTAR ISX DEF TANK | 1 | 4066996C91 |
| SUPPORT PDM DEF TANK ASSEMBLY | 1 | 4063903C1 |
| VALVE, DEF TANK HEATER | 1 | 4064184C1 |
| SUPPORT, BRIGHT COVER, BOTTOM ASSEMBLY, 23 GAL | 1 | 4065870C1 |
| SUPPORT, BRIGHT COVER, TOP ASSEMBLY, 23 GAL DEF TANK | 1 | 4065877C1 |
| SUPPORT, BRIGHT COVER, ASSEMBLY, 23 GAL DEF TANK | 1 | 4065882C1 |
| HARNESS, JUMPER, LONESTAR ISX | 1 | 4066996C92 |
| HOSE HEATER PREMIUM 5/8 ID | 0 | 2643485R1 |
| SPACER | 4 | 561277R1 |
| STRAP, CABLE LOCK | 6 | 306132C1 |
| NUT, HEXAGON M10 | 4 | 3535556C1 |
| BOLT, FLANGE HEAD M8 X 20 | 4 | 3547776C1 |
| BOLT, FLANGE HEAD M10 X 3 | 6 | 3549305C1 |
| MODULE, SUPPLY | 1 | 3838069C2 |
| BOLT, FLANGE HEAD M6 X 20 | 4 | 3552155C1 |
| BOLT, FLANGE HEAD M8 X 90 | 3 | 3557701C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
