3667710C94
BUMPER FRONT, ASSEMBLY, W/FOG LIGHTS AND CHROME R
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$389.95
$467.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
BUMPER FRONT, ASSEMBLY, W/FOG LIGHTS AND CHROME R

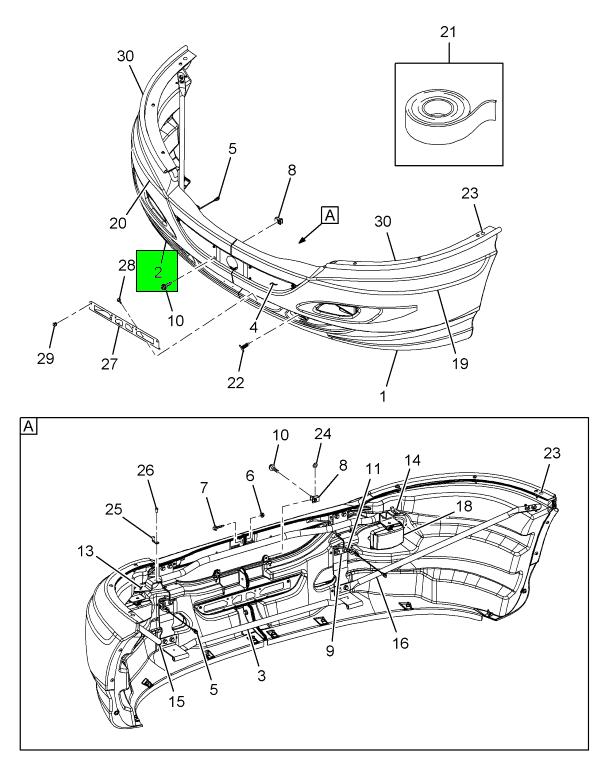

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BUMPER FRONT, REINFORCEMENT ASSEMBLY, W/CHROME, R | 1 | 3814307C93 |
| BUMPER FRONT ,OTR PANEL ,W/FOG LAMPS, PAINTED, RIGHT HAND | 1 | 3804904C4 |
| BUMPER FRONT ,OTR PANEL ,W/FOG LAMPS, PAINTED, RIGHT HAND | 1 | 3804904C5 |
| BOLT, SEMS ALL TORX M8 X 1.25 X 30 MM | 3 | 3588153C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 3 | 3541323C1 |
| NUT, HEXAGON M6 | 1 | 3544378C1 |
| BOLT, HEXAGON HEAD WITH PAINT SCRAPER M6 35 MM LONG | 7 | 3669494C1 |
| NUT, "U" M-6 | 6 | 1660658C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
