3560198C1

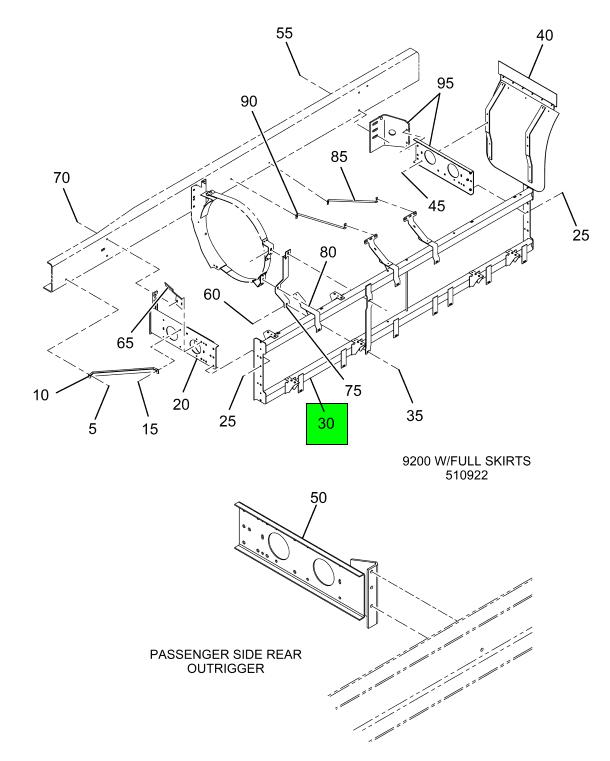

FR ASSEMBLY, SKIRT RIGHT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,799.95
$2,159.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FRAME SKIRT SKIRT FRAME ASSY R

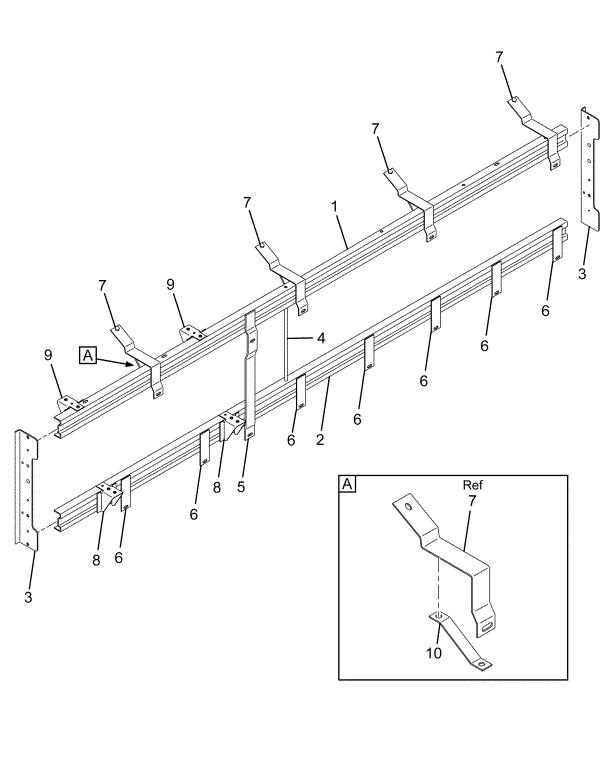

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CHANNEL, SKIRT | 1 | 3560066C1 |
| BRACKET, FUEL TANK SKIRT MOUNTING | 3 | 3526547C1 |
| CHANNEL, SKIRT | 1 | 3560067C1 |
| BRACKET, SKIRT | 2 | 3522984C1 |
| ROD, SKIRT | 1 | 3522985C1 |
| BRACKET, SKIRT | 1 | 3522986C1 |
| BRACKET, SKIRT | 7 | 3522987C1 |
| BRACKET, FUEL TANK SKIRT MOUNTING | 4 | 3522988C1 |
| BRACKET, MOUNTING STEP | 2 | 3526022C1 |
| BRACKET, MOUNTING STEP | 2 | 3526023C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
