2589048C91

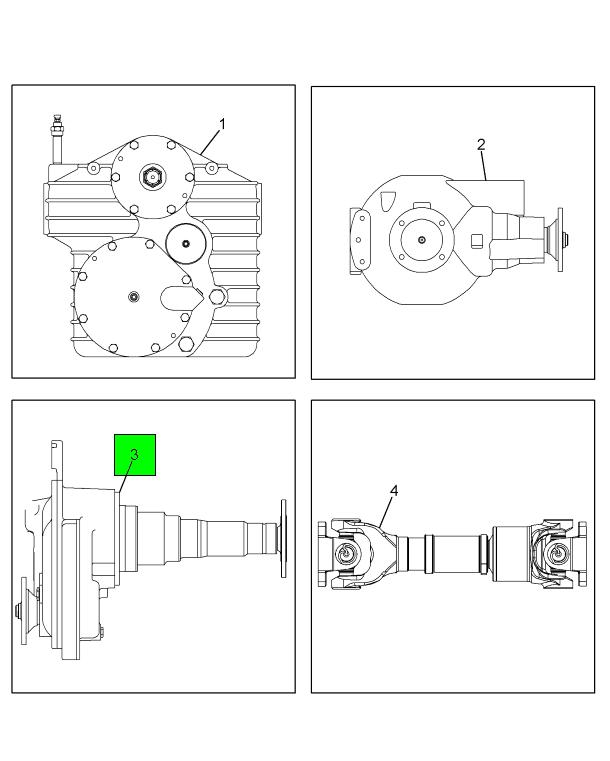

KIT, LEFT WHEEL END LEFT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
KIT, LEFT WHEEL END LEFT
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, YOKE | 1 | 2589841C1 |
| NUT, LOCK INPUT YOKE | 1 | 2589842C1 |
| FLANGE, INPUT COMPANION | 1 | 2601692C1 |
| FLANGE, INPUT COMPANION | 1 | 2589843C1 |
| PLUG, MAGNETIC #8 O-RING | 1 | 2589512C1 |
| SEAL OIL DROP BOX | 1 | 2589510C1 |
| AXLE, STUB | 1 | 2589051C1 |
| PLUG, LEVEL | 1 | 2589877C1 |
| PLUG, FILLER | 1 | 2589876C1 |
| NUT, HEXAGON FLANGE | 6 | 30755R1 |
| BOLT, FLANGE HEAD M12 X 70 | 6 | 31069R1 |
| BOLT, AXLE SHAFT FLANGE 5/8" X 1 3/4" UNC | 1 | 3533677C1 |
| NUT, LOCK 5/8" UNF | 8 | 9411658 |
| VENT, DROP BOX AIR | 1 | 2589511C1 |
CROSS REFERENCES
- R CUSH 17641
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
