2603298C91

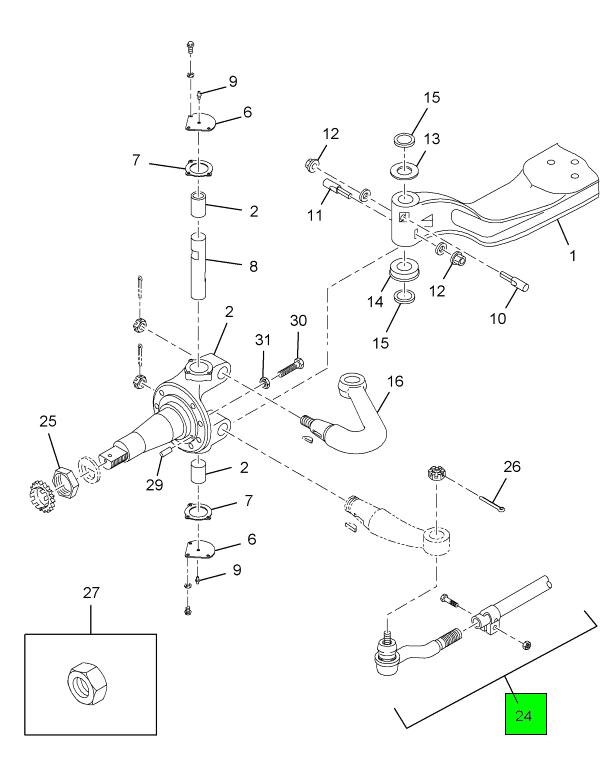

ROD FRONT AXLE TIE W/ENDS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$699.95
$839.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
ROD FRONT AXLE TIE W/ENDS
Package Dimensions
71.0 x 5.0 x 4.0 in
Weight
27 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| END, ASSEMBLY TIE ROD RIGHT | 1 | 2604290C91 |
| END, ASSEMBLY TIE ROD LEFT | 1 | 2604291C91 |
| SEAL LINK DUST SHIELD | 2 | 2604292C1 |
| NUT, HEXAGON SLOTTED 7/8" UNF | 2 | 26963R1 |
CROSS REFERENCES
- MERITOR A23102A4655
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
