2023778C1
HOOD, BONDED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,899.95
$3,479.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HOOD,ASM 3000 & 4000
Engine Platform
Legacy
Weight
264.55 lbs

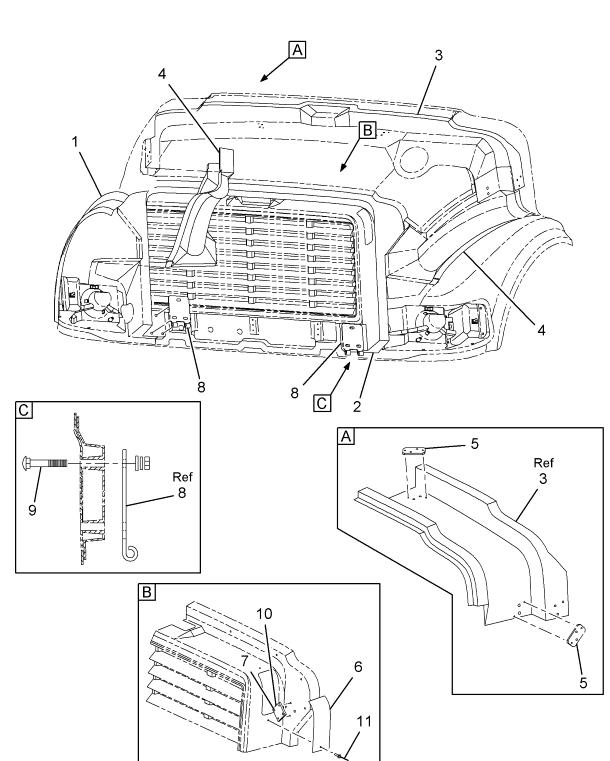

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL HOOD*OUTER | 1 | 2023788C1 |
| PLATE, TAPPING HORN | 2 | 1664489C1 |
| RIVET, BLIND 3/16" | 4 | 3545779C1 |
| REINFORCEMENT HOOD-FRONT | 1 | 1657743C3 |
| REINFORCEMENT HOOD REAR | 1 | 1657746C1 |
| REINFORCEMENT HOOD SIDE-LH | 1 | 1657744C2 |
| REINFORCEMENT HOOD SIDE-RIGHT HAND | 1 | 1657745C2 |
| RIVET, BLIND | 8 | 403061C1 |
| PLATE TAPPING-HOOD STOP | 4 | 484242C1 |
| SCREEN, AIR INTAKE GRILLE | 2 | 1657769C1 |
| LEAF, HOOD HINGE | 2 | 1658979C1 |
| WASHER FLAT .406" X .812" X .089" | 6 | 25709R1 |
| WASHER, LOCK ZINC PLATED 3/8" | 6 | 120382 |
| NUT 3/8" UNF | 6 | 25522R1 |
| BOLT, CARRIAGE RIBBED NECK 3/8" X 2 3/4" UNC | 6 | 3522704C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
