4104344C91
FILTER, FUEL, DAVCO 488 N/HEAT ,8 MICRON, W/WIF, W/ESOC
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,749.95
$2,099.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FILTER, FUEL, DAVCO 488 N/HEAT ,8 MICRON, W/WIF, W/ESOC
Weight
12 lbs

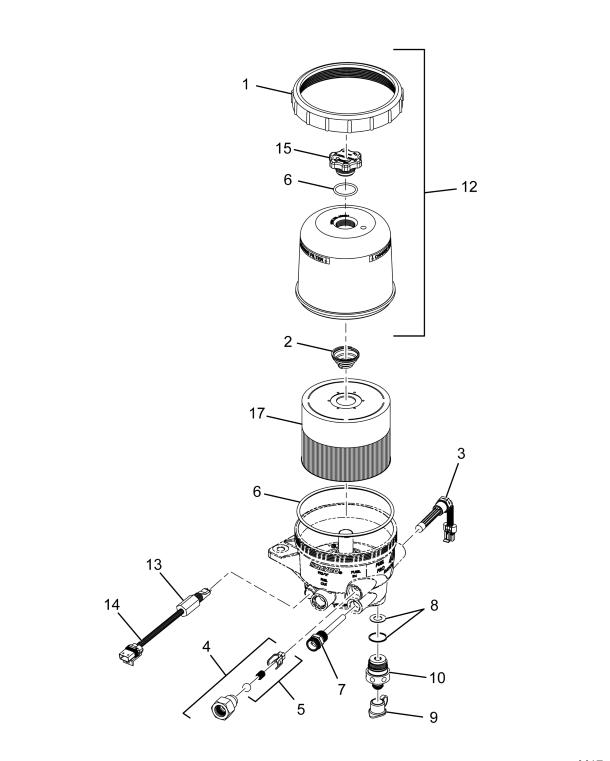

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COLLAR | 1 | 2514097C1 |
| VALVE, DRAIN | 1 | 2517050C1 |
| COVER AND COVER BLACK BAND AND VENT CAP | 1 | 2517086C1 |
| SWITCH SENSOR (WIF) | 1 | 2603440C1 |
| HARNESS, HEATER FUEL FILTER | 1 | 2598845C1 |
| HARNESS, HEATER FUEL FILTER | 1 | 2598844C1 |
| CAP, AIR VENT | 1 | 1694745C91 |
| ELEMENT, FUEL WATER SEPARATOR, FILTER | 1 | FS20083 |
| SPRING, FUEL FILTER ELEMENT | 1 | 1694747C1 |
| HEATER | 1 | 2512637C1 |
| CHECK VALVE ASSEMBLY CHECK VALVE BODY | 1 | 2512636C91 |
| O-RING, VENT, CAP COVER | 1 | 2517087C1 |
| PREHEATER, ENGINE | 1 | 2505090C1 |
| COLLAR WENCH | 1 | 2517084C1 |
| CAP, DRAIN | 1 | 2517051C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
