3556524C92

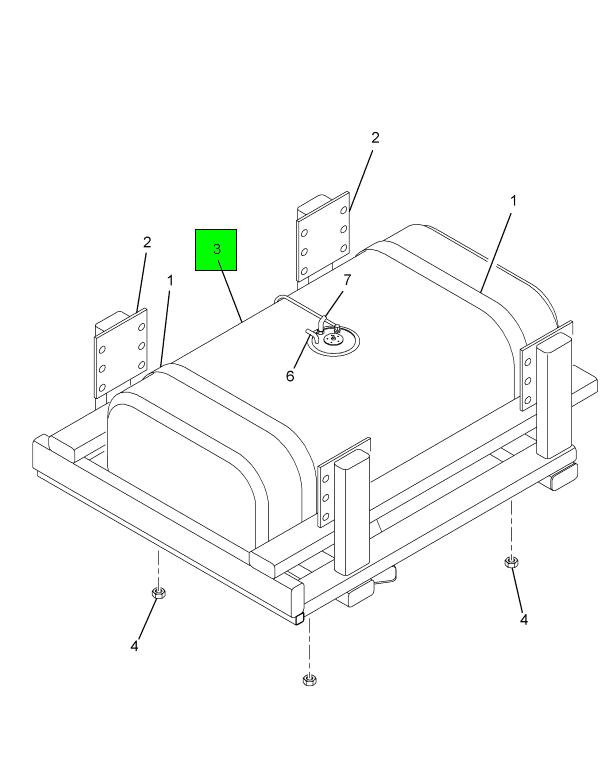

TANK, FUEL MID MOUNTING MID MOUNTING 65 GALLON
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
TANK, FUEL MID MOUNTING MID MOUNTING 65 GALLON
Weight
132 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| GAUGE FUEL SENDER | 1 | 497840C96 |
| FLANGE, FUEL TANK DRAIN WELD 1/2NPT | 1 | 224737R1 |
| FLANGE, FUEL TANK OUTLET 3/4 NPTF | 1 | 3545292C1 |
| VENTILATOR, FUEL FULL FUNCTION | 1 | 3548222C1 |
| OUTLET, FUEL TANK FUEL TANK | 1 | 1647277C1 |
| GASKET FUEL GAUGE SENDER | 1 | 464751C3 |
| SCREW, SELF TAPPING #10 X 5/8" | 5 | 28220R1 |
| CLAMP, HOSE GIVE SIZE 9/16 DIAMETER HOSE | 1 | 406340C1 |
| PLUG, PIPE 3/4"-14 | 1 | 444638 |
| FITTING, SOCKET HEAD PLUG 1/2" NPT | 1 | 444705 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
