2212700C92
DOOR ASSEMBLY O/O ALTN ENTRANCE R
IC Bus
BACK ORDERED
Please contact us for information on lead time
$3,499.95
$4,199.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DOOR ASSEMBLY O/O ALTN ENTRANCE R

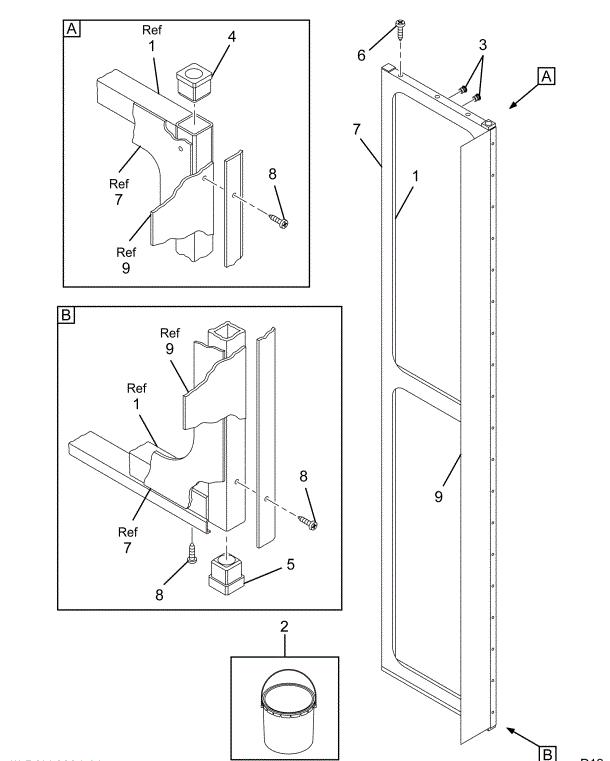

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| DOOR ASSEMBLY FR ALTN ENTR | 1 | 2212651C92 |
| INSERT, THREADED 5/16" X 1" UNC | 2 | 437866001 |
| SLEEVE, ENTRANCE DOOR TOP HINGE PIN | 1 | 437018001 |
| SLEEVE, ENTRANCE DOOR BOTTOM HINGE PIN | 1 | 437005001 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #8 X 1/2" | 3 | 91301100 |
| TRIM ENTRANCE DOOR | 1 | 437230001 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #12 X 3/4 UNC | 19 | 91301600 |
