3590842C91

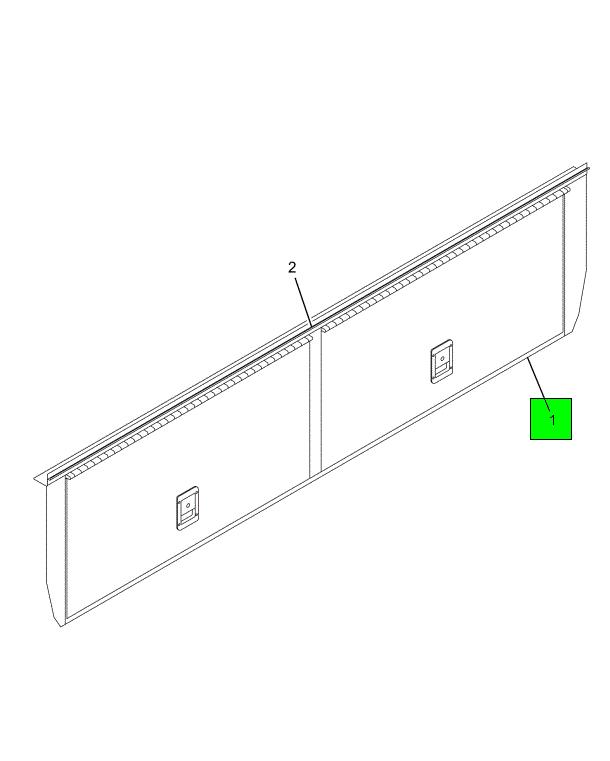

DOOR, LUGGAGE BOX RUBBER HINGE
IC Bus
BACK ORDERED
Please contact us for information on lead time
$629.95
$755.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DOOR, LUGGAGE BOX RUBBER HINGE
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| DOOR, LUGGAGE BOX RUBBER HINGE | 1 | 3590840C1 |
| PIN, COTTER 3/32" X 1" | 2 | 103374 |
| RIVET 3/16" X 7/16" .062 GRIP | 4 | 416860001 |
| REINFORCEMENT DOOR LUGGAGE BOX 114" W/T- HANDLE | 1 | 435743015 |
| BRACKET | 2 | 5334101 |
| LATCH, LOCKING "T" HANDLE STAINLESS STEEL | 1 | 442329001 |
| NUT, LOCK FIBER PLATED 1/4" UNC | 4 | 24468R1 |
| NUT, LOCK FIBER PLATED 1/4" UNC | 4 | 90900500 |
| HINGE, RUBBER 114" LUGGAGE BOX | 1 | 442394004 |
| BRACKET LUGGAGE BOX STRIKER | 2 | 442864001 |
| SCREW TYPE AB | 4 | 91110500 |
| BAR, STRIKER LUGGAGE BOX W/"T"- HANDLE 114" | 2 | 442863002 |
