$1,599.95
$1,919.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
174-001-000
OEM Description
DOOR CONTROL ELEC F/F

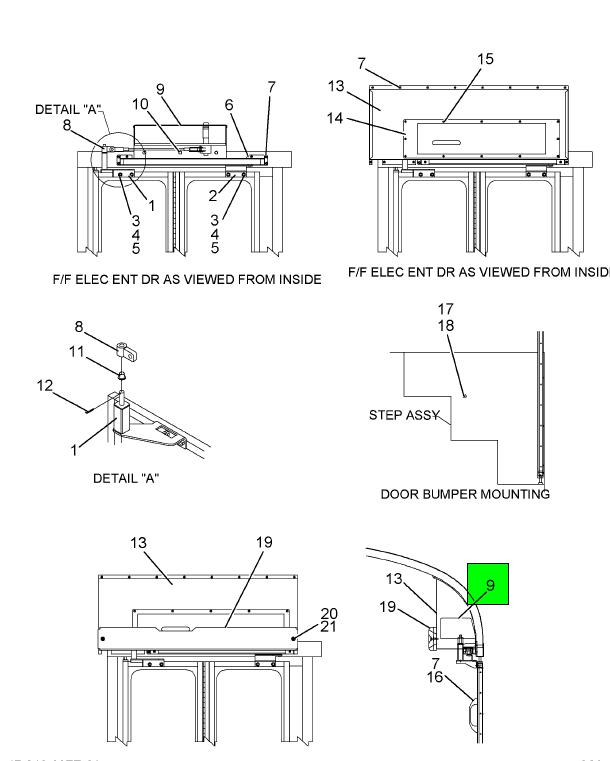

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PLATE, MOTOR GUIDE | 1 | 2588577C1 |
| SHAFT, DOOR DRIVE | 1 | 2588578C1 |
| FR MAIN | 1 | 2588572C1 |
| FR LOWER | 1 | 2588573C1 |
| PLATE, MOTOR BLOCK | 1 | 2588575C1 |
| PLATE, MOTOR | 1 | 2588576C1 |
| ARM DOOR CRANK | 1 | 2588579C1 |
| CLAMP, TOGGLE | 1 | 2588580C1 |
| GEAR DRIVE | 1 | 2588581C1 |
| CLAMP, TOGGLE | 1 | 2588582C1 |
| ROD, TIE | 1 | 2588583C1 |
| SWITCH, CAM LIMIT | 1 | 2588584C1 |
| MOUNTING, LIMIT SWITCH | 1 | 2588585C1 |
| SWITCH, LIMIT | 1 | 2588586C1 |
| HANDLE EMERGENCY RELEASE | 1 | 2588587C1 |
| STOP, DOOR | 1 | 2588588C1 |
| SPACER, MOTOR | 1 | 2588589C1 |
| MOTOR, DOOR CONTROL | 1 | 2588590C1 |
| RELAY, 8 TERMINAL | 1 | 2588140C1 |
| KNOB, RED BALL | 1 | 2588591C1 |
| ROD, SPECIAL CRANK | 1 | 2588592C1 |
CROSS REFERENCES
- EXCELL 8901-001-0
- EXCELL 8901-001-0
