$759.95
$911.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
DOOR ASSY O/O AFT CS/IS
Package Dimensions
76.0 x 20.0 x 3.0 in
Weight
26.05 lbs

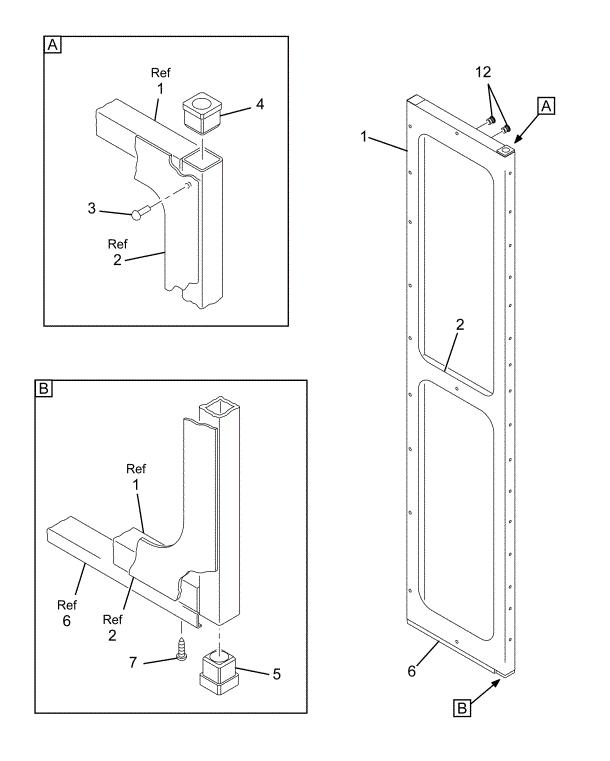

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR ASSEMBLY ENTRANCE DOOR | 1 | 426294001 |
| INSERT, THREADED 5/16" X 1" UNC | 2 | 437866001 |
| PANEL, ENTRANCE DOOR | 1 | 437215001 |
| RIVET 3/16" X 7/16" .062 GRIP | 21 | 416860001 |
| SLEEVE, ENTRANCE DOOR TOP HINGE PIN | 1 | 437018001 |
| SLEEVE, ENTRANCE DOOR BOTTOM HINGE PIN | 1 | 437005001 |
| RETAINER, BOTTOM FORWARD RUBBER | 1 | 4571543 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #8 X 1/2" | 4 | 91301100 |
