443794002
DOOR, ENGINE ACCESS RIGHT HAND
IC Bus
BACK ORDERED
Please contact us for information on lead time
$529.95
$635.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DOOR, ENGINE ACCESS RIGHT HAND
Weight
34.07 lbs

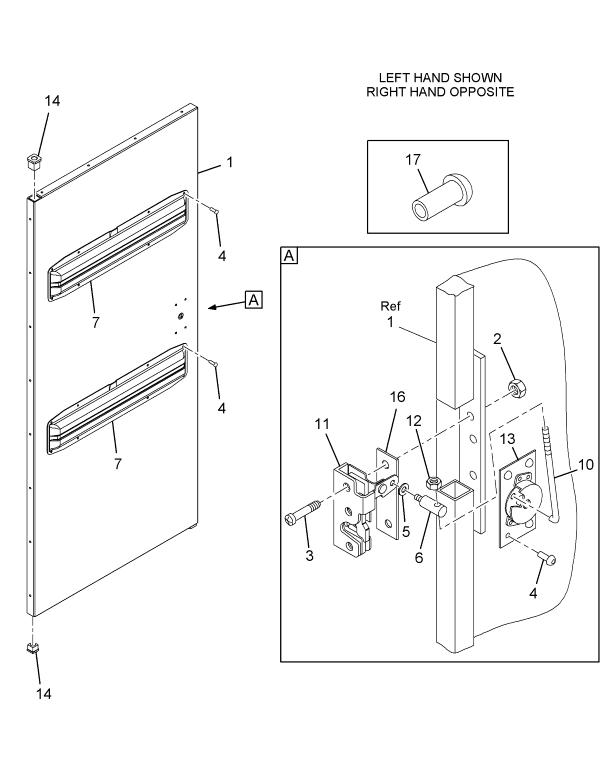

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| DOOR, ACCESS W/PANEL RIGHT HAND | 1 | 443783002 |
| ROD, LINKAGE ENGINE ACCESS DOOR ACTUATOR | 2 | 431158001 |
| CAM, LATCH LEFT ENGINE ACCESS DOOR RIGHT HAND | 1 | 431162001 |
| NUT, LOW CROWN 1/4" UNC | 1 | 411283000 |
| LATCH, ROTARY ENGINE ACCESS DOOR | 1 | 431159001 |
| LATCH, ROTARY ENGINE ACCESS DOOR | 1 | 431160001 |
| SLEEVE, ENTRANCE DOOR TOP HINGE PIN | 2 | 437018001 |
| SHIM ENGINE ACCESS DOOR LATCH MOUNTING | 1 | 443849001 |
| RIVET 3/16" X 7/16" .062 GRIP | 2 | 416860001 |
| NUT, HEXAGON LOCK 1/4"-20 UNC | 3 | 26110R1 |
| BOLT 1/4" X 1 1/2" | 3 | 25487R1 |
| RIVET, PLAIN 3/16" X 3/8" | 20 | 412336001 |
| WASHER, BEARING LATCH CATCH | 1 | 431223001 |
| PIN, LINKAGE ENGINE ACCESS DOOR ACTUATOR | 1 | 431220001 |
| RUB- RAIL, ENGINE ACCESS DOOR LEFT HAND 18" | 2 | 425780043 |
| RUB- RAIL, ENGINE ACCESS DOOR RIGHT HAND 18" | 2 | 425780044 |
