$419.95
$503.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DOOR *ASSY O/O ALT ENT 48"
Weight
12.03 lbs

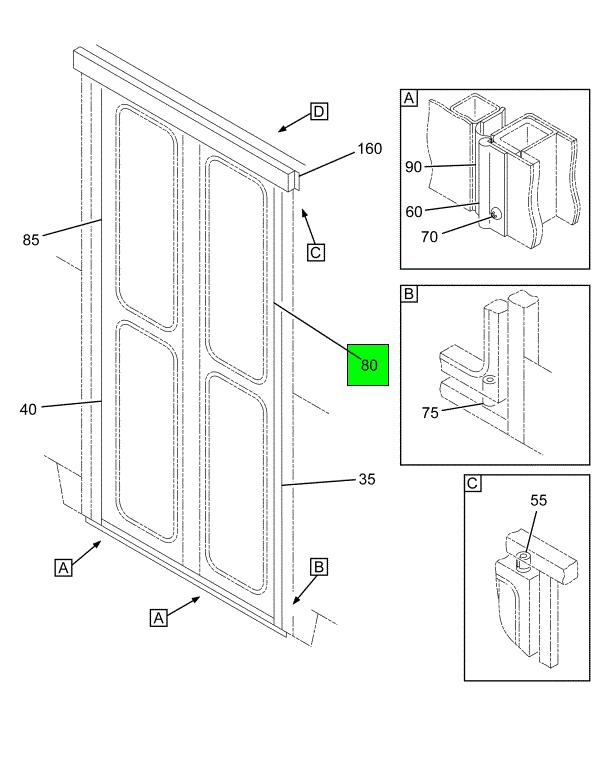

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR ASSEMBLY ALTERNATE ENTRANCE DOOR | 1 | 448519001 |
| RETAINER, ALTERNATE ENTRANCE DOOR RUBBER | 1 | 4571554 |
| RETAINER, BOTTOM FORWARD RUBBER | 1 | 4571543 |
| INSERT, THREADED 5/16" X 1" UNC | 4 | 437866001 |
| PANEL, ALTERNATE ENTRANCE DOOR | 1 | 448520002 |
| RIVET 3/16" X 7/16" .062 GRIP | 21 | 416860001 |
| SLEEVE, ENTRANCE DOOR TOP HINGE PIN | 1 | 437018001 |
| SLEEVE, ENTRANCE DOOR BOTTOM HINGE PIN | 1 | 437005001 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #8 X 1/2" | 3 | 91301100 |
| TRIM ALTERNATE ENTRANCE DOOR | 1 | 437230004 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #12 X 3/4 UNC | 19 | 91301600 |
