3715205C2

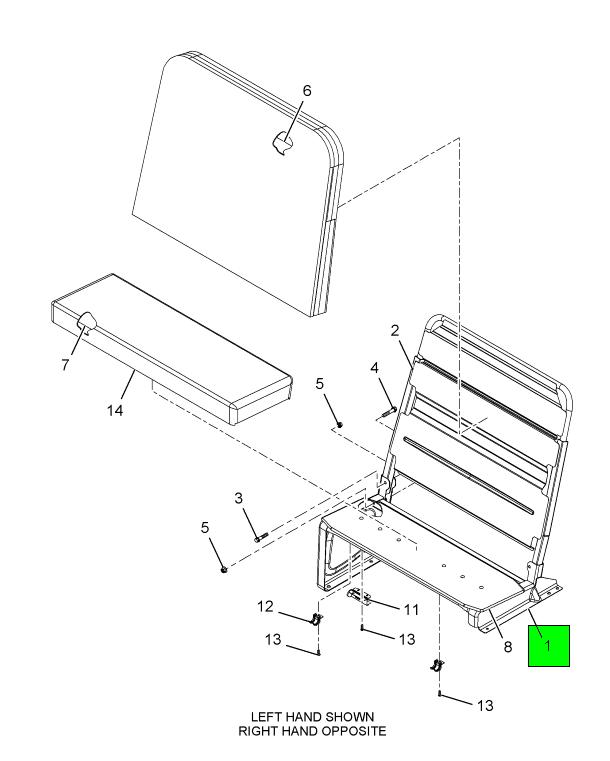

FR, SEAT BASE ASSEMBLY TRACK L 39
IC Bus
BACK ORDERED
Please contact us for information on lead time
$234.95
$281.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FR, SEAT BASE ASSEMBLY TRACK L 39
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RISER SEAT SUPPORT R | 1 | 3697453C2 |
| SUPPORT TRACK RISER TAIL, R | 1 | 3857628C1 |
| RISER, SEAT SUPPORT | 1 | 3821937C2 |
| SUPPORT SEATBACK FR | 2 | 3821579C1 |
| SUPPORT SEAT FR | 1 | 3682000C1 |
| REINFORCEMENT SEAT SUPPORT | 1 | 3677451C1 |
| REINFORCEMENT SEAT RISER INNER | 1 | 3856262C1 |
| BOLT, HEXAGON FLANGE W/LOCK WASHER | 2 | 3686572C1 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 2 | 3836928C1 |
