$629.95
$755.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FRAME ASSY REAR 74HR 16GA STD
Weight
250.52 lbs

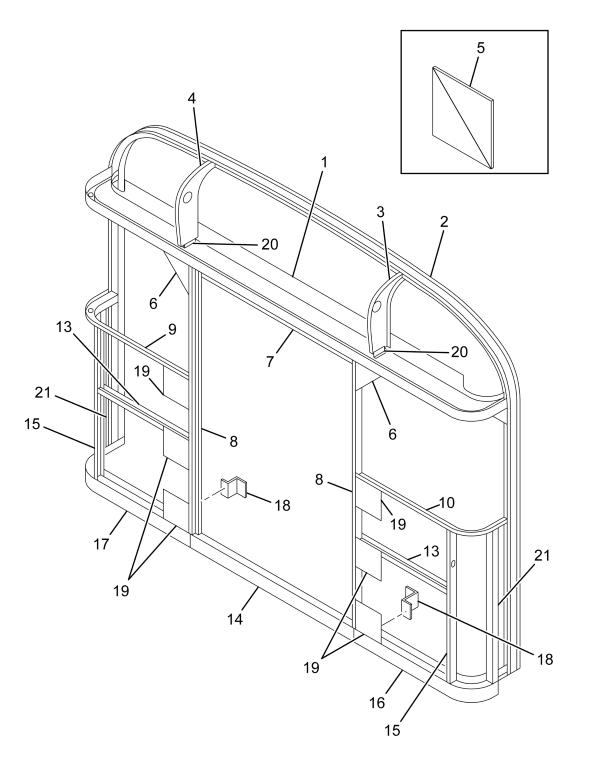

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HEADER REAR FR W/HOLES | 1 | 6409401 |
| BRACE, WINDOW SILL REAR CORNER RIGHT HAND | 1 | 8555101 |
| FR, CHANNEL HORIZONTAL REAR | 2 | 419306001 |
| THRESHOLD, REAR DOOR | 1 | 419310001 |
| POST, REAR FR CORNER | 2 | 8558202 |
| BASE, REAR FR RIGHT HAND | 1 | 419309001 |
| BASE, REAR FR LEFT HAND | 1 | 419309002 |
| END, THRESHOLD STEP REAR END | 2 | 419313001 |
| PLATE 6" X 6" WRAP AROUND | 6 | 419354001 |
| PLATE REAR END 10 GAUGE | 6 | 453615001 |
| BOW, ROOF W/O NOTCH 16 GAUGE X 109 7/16" | 1 | 435750001 |
| PLATE 10 GAUGE X 1" X 3" | 4 | 310200 |
| POST, REAR FR CORNER SIDE POSITION | 2 | 8558203 |
| BRACE, LEFT FRONT AND RIGHT REAR BOW | 1 | 6378501 |
| BRACE, RIGHT FRONT AND LEFT REAR BOW | 1 | 6378502 |
| GUSSET 10 GAUGE X 6" X 6" | 2 | 206360000 |
| GUSSET REAR FR | 2 | 21479000 |
| HEADER REAR DOOR | 1 | 425050001 |
| POST, DOOR LEFT REAR W/HINGE PLATE CUTOUT | 1 | 449306005 |
| POST, REAR DOOR 54 1/4" | 2 | 419305001 |
| ANGLE 10 GAUGE X 1" X 1" X 3" | 2 | 436290001 |
| POST, REAR DOOR HINGE RIGHT HAND | 1 | 449305003 |
| BRACE, WINDOW SILL REAR CORNER LEFT HAND | 1 | 8555102 |
