$349.95
$419.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FRAME REAR ASSY 74HR 16GA

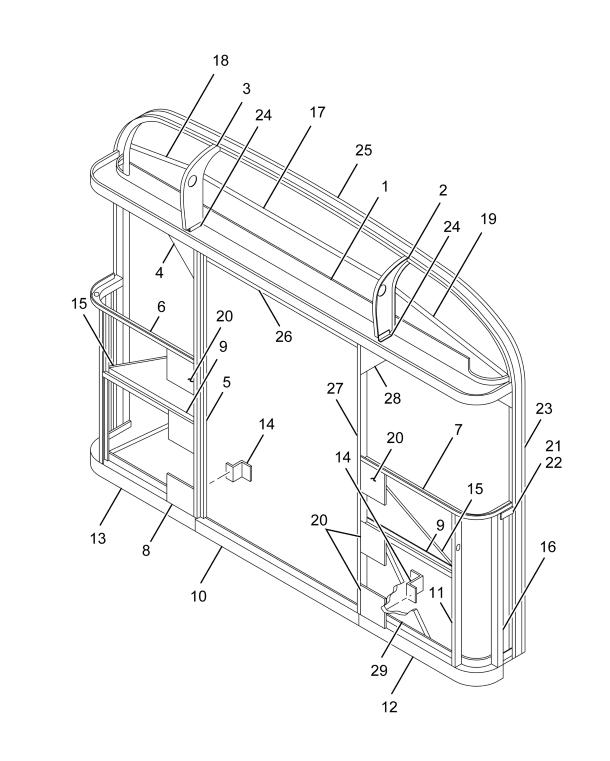

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HEADER REAR FR W/HOLES | 1 | 6409401 |
| THRESHOLD, REAR DOOR | 1 | 419310001 |
| POST, REAR FR CORNER | 4 | 8558202 |
| BASE, REAR FR RIGHT HAND | 1 | 419309001 |
| BASE, REAR FR LEFT HAND | 1 | 419309002 |
| END, THRESHOLD STEP REAR END | 2 | 419313001 |
| GUSSET 20 X 13 1/2 | 2 | 2233538C2 |
| GUSSET 20 X 13 1/2 | 2 | 413082003 |
| REINFORCEMENT, REAR FR | 2 | 453642001 |
| BRACE BOW | 1 | 6849300 |
| BRACE BOW LEFT HAND | 1 | 6848402 |
| BRACE BOW RIGHT HAND | 1 | 6848401 |
| BRACE, LEFT FRONT AND RIGHT REAR BOW | 1 | 6378501 |
| PLATE REAR END 10 GAUGE | 6 | 453615001 |
| SILL, WINDOW REAR RIGHT HAND | 1 | 9360003 |
| SILL, WINDOW LEFT HAND REAR | 1 | 9360004 |
| REINFORCEMENT, BOW | 2 | 6854101 |
| PLATE 10 GAUGE X 1" X 3" | 4 | 310200 |
| BOW, ROOF W/O NOTCH 16 GAUGE X 109 7/16" | 1 | 435750001 |
| HEADER REAR DOOR | 1 | 419760001 |
| POST, REAR DOOR HINGE RIGHT HAND | 1 | 449305003 |
| GUSSET 3 5/32" X 3 5/32" | 1 | 452982001 |
| GUSSET REAR FR 10 GAUGE | 1 | 453469001 |
| BRACE, RIGHT FRONT AND LEFT REAR BOW | 1 | 6378502 |
| GUSSET 4 X 4 | 1 | 413082002 |
| POST, DOOR LEFT REAR W/HINGE PLATE CUTOUT | 1 | 449306005 |
| SILL, WINDOW LEFT HAND REAR | 1 | 9360002 |
| SILL, WINDOW REAR RIGHT HAND | 1 | 9360001 |
| GUSSET 13 1/2 X 17 3/16 | 2 | 413083000 |
| ANGLE 10 GAUGE X 1" X 1" X 3" | 2 | 436290001 |
| POST REAR FR REINFORCEMENT POST-78"HR | 2 | 6852202 |
| POST, REAR DOOR 54 1/4" | 2 | 419305001 |
| GUSSET 10 GAUGE X 6" X 6" | 2 | 206360000 |
| POST REAR FR REINFORCEMENT POST-74"HR | 2 | 6852201 |
| PLATE 6" X 6" WRAP AROUND | 6 | 419354001 |
| HEADER REAR DOOR | 1 | 425050001 |
| FR, CHANNEL HORIZONTAL REAR | 2 | 419306001 |
