440361001
FR ASSEMBLY HIGH BACK SEAT 4- LEG
IC Bus
BACK ORDERED
Please contact us for information on lead time
$214.95
$257.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
FR ASSEMBLY HIGH BACK SEAT 4- LEG

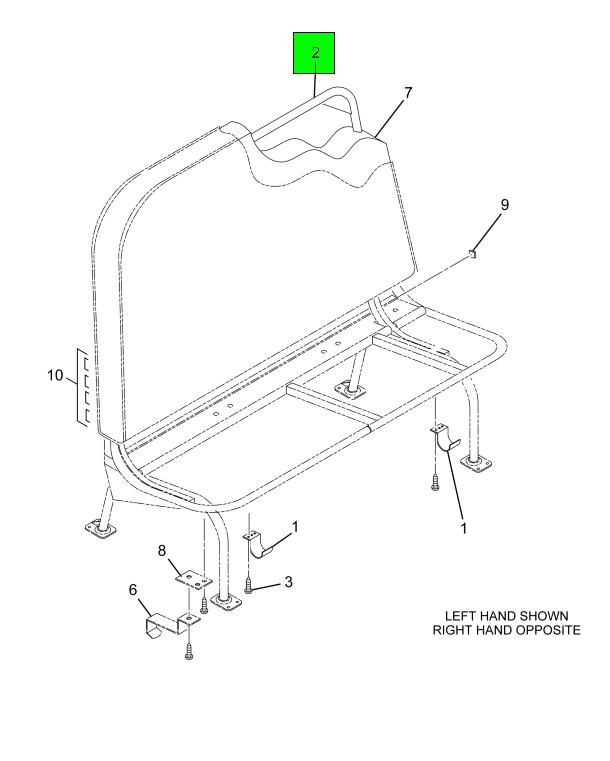

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT UPPER 4- LEG H | 1 | 440365001 |
| TUBE SEAT PASS SUPPORT 1997 | 1 | 440217001 |
| LEG, SEAT ASSEMBLY ANCHOR DOT 1997 | 2 | 440363001 |
| BRACE RIGHT HAND ANCHOR AISLE SIDE | 1 | 440374002 |
| BRACE LH ANCHOR WALL SIDE | 1 | 440375001 |
| BRACE LEG LH ANCHOR | 1 | 440373001 |
| BRACE LEG RIGHT HAND ANCHOR | 1 | 440373002 |
| STRIP, TACK SEAT DOT 1997 45" | 1 | 439060008 |
| STRIP, TACK SEAT DOT 1997 COMMUNICATION | 1 | 439060007 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #8 X 1" | 1 | 91306000 |
| TUBE STEEL SQUARE 1" X 1" X | 1 | 413355041 |
| PLATE, SEAT ANCHOR 45" 4 LEG | 1 | 440369007 |
| PLATE DOT 1997 ST 4-LE | 1 | 440369013 |
