442393006
FR ASSEMBLY 39" HIGH BACK SEAT RIGHT HAND
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,499.95
$1,799.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FR ASSEMBLY 39" HIGH BACK SEAT RIGHT HAND
Weight
53.11 lbs

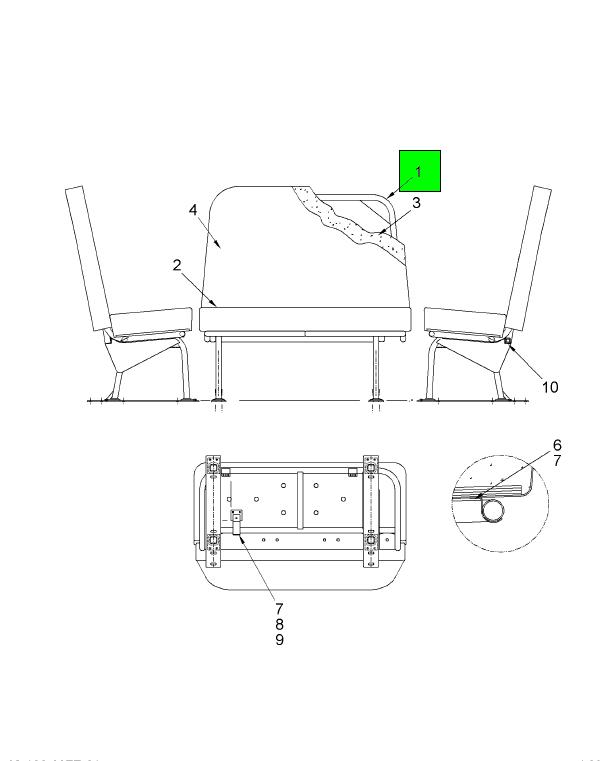

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, UPPER SEAT 4- LEG | 1 | 440365004 |
| TUBE SEAT PASS SUPPORT 1997 | 1 | 440217001 |
| PLATE SEAT TRACK 1997 | 2 | 442390001 |
| LEG, SEAT ANCHOR TRACK | 2 | 442391001 |
| BRACE RIGHT HAND ANCHOR AISLE SIDE | 2 | 440374002 |
| BRACE RIGHT HAND ANCHOR WALL SIDE | 1 | 440375002 |
| BRACE LEG LH ANCHOR | 1 | 440373001 |
| BRACE LEG RIGHT HAND ANCHOR | 1 | 440373002 |
| STRIP, TACK SEAT DOT 1997 39" | 1 | 439060009 |
| SCREW, PAN HEAD COUNTERSUNK TYPE AB PLATED #8 X 1" | 7 | 91306000 |
| TUBE STEEL SQUARE 1" X 1" X | 1 | 413355039 |
| STRIP, TACK SEAT DOT 1997 COMMUNICATION | 1 | 439060007 |
| PLATE DOT 1997 ST 4-LE | 1 | 440369013 |
| PLATE DOT 1997 ST 4-LE | 1 | 440369008 |
