448116104

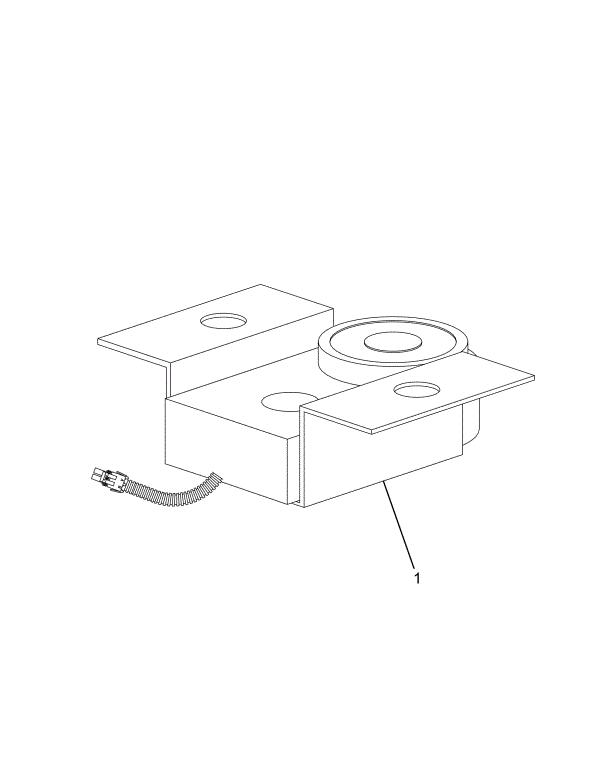

KIT, CROSSING GATE MAGNET W/BRACKET
IC Bus
BACK ORDERED
Please contact us for information on lead time
$63.95
$76.74
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
174-001-000
OEM Description
KIT, CROSSING GATE MAGNET W/BRACKET
Package Dimensions
15.1 x 6.0 x 5.15 in
Weight
2.32 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, FLAT ZINC PLATED 5/16" | 1 | 434092011 |
| NUT, HEXAGON (WHIZ) 1/4" UNC | 2 | 427941021 |
| MAGNET, ELECTRONIC | 1 | 2509621C1 |
| BOLT 1/4" X 3/4" UNC | 2 | SMC174 |
| HARNESS, ELECTRICAL CROSSING GATE MAGNET W/MAGNET | 1 | 448116105 |
| PLATE, LATCH POLYURETHANE | 1 | 2509624C1 |
| BRACKET, MOUNTING ELECTRONIC MAGNET | 1 | 2509626C1 |
| BRACKET, SUPPORT ELECTRONIC MAGNET | 1 | 2509627C1 |
| BOLT 5/16" X 1 1/4" UNC | 1 | 434092009 |
| BOLT 1/4" X 3/4" UNC | 2 | 2509175C1 |
CROSS REFERENCES
- SPECMFG 008102
- SPECMFG 008102
- SPECMFG 08102
- SPECMFG 08102
- SPECMFG 8102
- SPECMFG 8102
