441458002

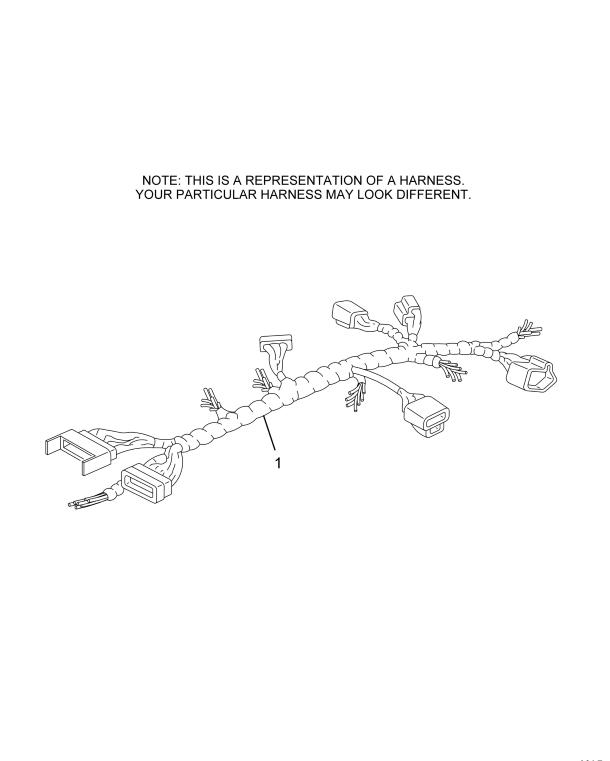

HARNESS, ELECTRICAL BODY ASSEMBLY MONITOR LEFT HAND
IC Bus
BACK ORDERED
Please contact us for information on lead time
$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL BODY ASSEMBLY MONITOR LEFT HAND
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COLLAR CONNECTOR PIN | 110 | 424852002 |
| CONNECTOR, PIN | 27 | 424852001 |
| TERMINAL, RING PIDG 10/12 | 9 | 203380000 |
| TERMINAL, UF FEMALE 16/12 | 6 | 203470000 |
| HOUSING, FEMALE TERMINAL SINGLE CIRCUIT | 6 | 203500000 |
| HOUSING, DISCONNECT CONNECTOR 15 CIRCUIT | 4 | 424855002 |
| HOUSING, LATCHING CONNECTOR 9 CIRCUIT | 3 | 424854001 |
| HOUSING, LATCHING CONNECTOR 15 CIRCUIT | 6 | 424854002 |
| HOUSING, LATCHING CONNECTOR 3 CIRCUIT | 1 | 424854003 |
| TERMINAL, AMP FULLY INSULATED | 9 | 425167001 |
| HOUSING, TERMINAL 2 CIRCUIT LATCHING CONNECTOR | 4 | 424855005 |
