454351001

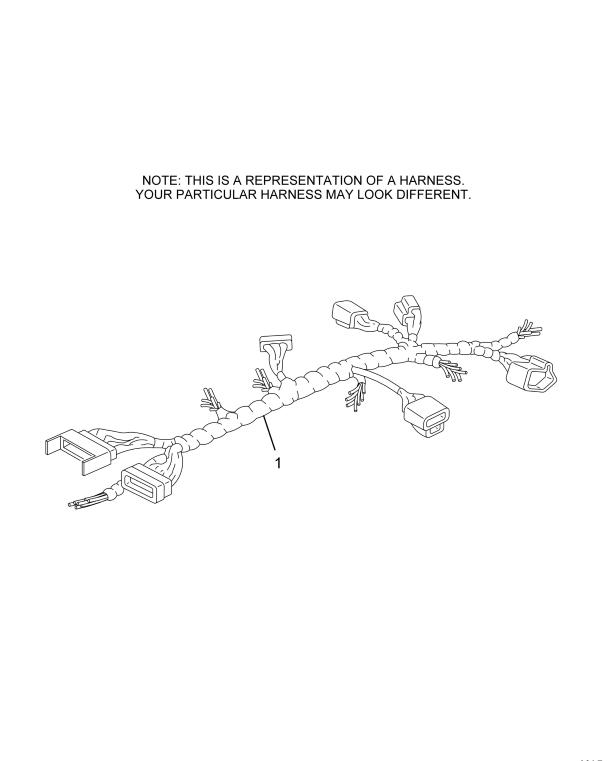

HARNESS, ELECTRICAL FLASHER OVERLAY HEATER SPLIT SWITCH LEFT, REAR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$184.95
$221.94
FINAL SALE. No returns or exchanges.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL FLASHER OVERLAY HEATER SPLIT SWITCH LEFT, REAR
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TERMINAL UNINSULATED FEMALE 12/14 AWG | 1 | 446313001 |
| CONNECTOR, PIN | 5 | 424852001 |
| TERMINAL, 1/4" RING PIDG 10/12 GAUGE | 1 | 203390000 |
| TERMINAL, UF FEMALE 16/12 | 11 | 203470000 |
| FUSE, ATC 25 | 1 | 417854010 |
| CONNECTOR SWITCH PANEL HARNESS BLACK | 1 | 441162001 |
| CONNECTOR SWITCH PANEL HARNESS WHITE | 1 | 3530564C1 |
| HOUSING, TERMINAL 2 CIRCUIT LATCHING CONNECTOR | 1 | 424854005 |
| HOUSING, LATCHING CONNECTOR 3 CIRCUIT | 1 | 424854003 |
| CONNECTOR SWITCH PANEL HARNESS WHITE | 1 | 441162002 |
