456002001
HARNESS, ELECTRICAL FRONT CAP
IC Bus
BACK ORDERED
Please contact us for information on lead time
$829.95
$995.94
FINAL SALE. No returns or exchanges.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS FRT CAP*ASSY RE COMME

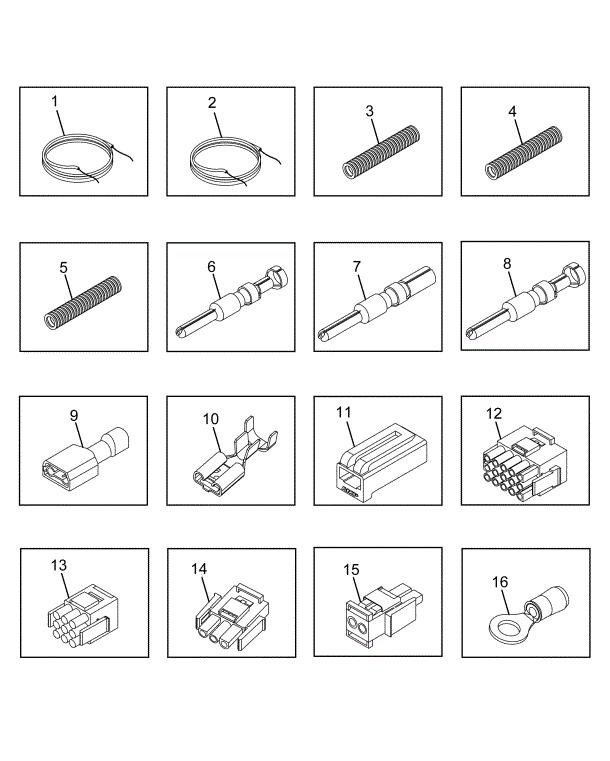

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TERMINAL, UF FEMALE 16/12 | 17 | 203470000 |
| HOUSING, FEMALE TERMINAL SINGLE CIRCUIT | 17 | 203500000 |
| HOUSING, DISCONNECT CONNECTOR 15 CIRCUIT | 1 | 424855002 |
| HOUSING, DISCONNECT CONNECTOR 9 CIRCUIT | 1 | 424855001 |
| HOUSING, DISCONNECT CONNECTOR 3 CIRCUIT | 2 | 424855003 |
| HOUSING, TERMINAL 2 CIRCUIT LATCHING CONNECTOR | 1 | 424855005 |
| TERMINAL, RING 16/14 AWG | 1 | 203370000 |
| HARNESS, ELECTRICAL CLUSTER LIGHTS | 1 | 454997001 |
| HARNESS, ELECTRICAL CLUSTER LIGHTS | 1 | 454999001 |
| CONNECTOR, SOCKET | 16 | 424853002 |
| CONNECTOR, SOCKET | 2 | 424853001 |
| COLLAR CONNECTOR PIN | 3 | 424852002 |
| TERMINAL, AMP FULLY INSULATED | 1 | 425167001 |
