3662027C93
HEATER 90000 BTU ASSEMBLY, STEPWELL
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HEATER 90000 BTU ASSEMBLY, STEPWELL
Weight
57.12 lbs

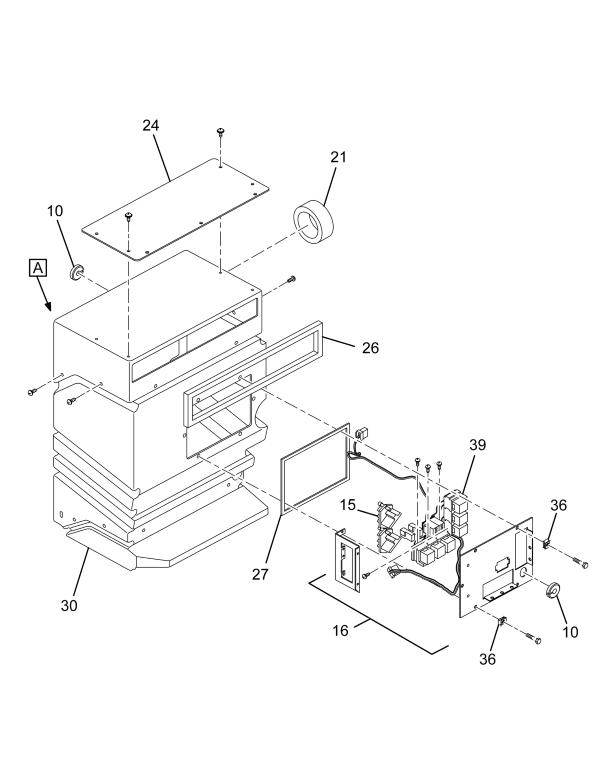

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| GROMMET, RUBBER | 3 | 2593518C1 |
| SEAL, DOOR MODE | 1 | 2595280C1 |
| BLOWER, STEPWELL 12 VOLT D/C | 1 | 2595282C91 |
| HEATER, CORE STEPWELL | 1 | 2595283C1 |
| SEAL, CORE HEATER | 1 | 2595284C1 |
| RESISTOR, BLOWER | 1 | 2595285C1 |
| HARNESS, WIRING /PLATE ASSEMBLY | 1 | 2593517C1 |
| DOOR ASSEMBLY, FRESH/RECIRCULATION | 1 | 2595286C91 |
| ACTUATOR, DOOR | 1 | 2593512C1 |
| BRACKET, MOUNTING ACTUATOR | 1 | 2595287C1 |
| BLOWER MOTOR ASSEMBLY WITH PLATE | 1 | 2593516C91 |
| SEAL, HEATER /DRYER | 1 | 2593507C1 |
| COVER, ACCESS FRONT | 1 | 2593500C1 |
| FILTER, HEATER | 1 | 2593515C1 |
| PLATE, MOUNTING TOP | 1 | 2593508C1 |
| COVER, PLATE FILTER | 1 | 2595290C1 |
| SEAL, FOAM DEFROSTER OUTLET | 1 | 2593519C1 |
| SEAL, COVER | 1 | 2593521C1 |
| LOUVER, AIR | 1 | 2593506C1 |
| BRACKET, AIR FRESH/RECIRCULATION | 1 | 2595291C1 |
| ACTUATOR, MOUNTING ASSEMBLY ,MODE | 1 | 2595275C91 |
| CASE, HEATER | 1 | 3662022C2 |
| SEAL, DOOR MODE | 1 | 2595281C1 |
| SEAL, AIR FRESH/RECIRCULATION | 1 | 2595289C1 |
| CLIP, #8 | 16 | 2593520C1 |
| RELAY, GENERATOR CONTROL | 6 | 2595297C1 |
| SPACER | 1 | 2595276C1 |
| CORE ASSEMBLY, HEATER WITH SEAL | 1 | 2593509C91 |
| ACTUATOR, RED | 1 | 2595277C1 |
| BRACKET, MOUNTING MOTOR STEPWELL HEATER | 1 | 2595278C1 |
| ADAPTER, HEATER DOOR SHAFT | 1 | 3664201C1 |
| DOOR MODE ASSEMBLY | 1 | 2595279C91 |
CROSS REFERENCES
- MODINE 1X010742
- MODINE 1X010742
