2211454C2
SEAT DRIVER NATL 42OZ BURGANDY VINYL
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT DRIVER NATL 42OZ BURGANDY VINYL

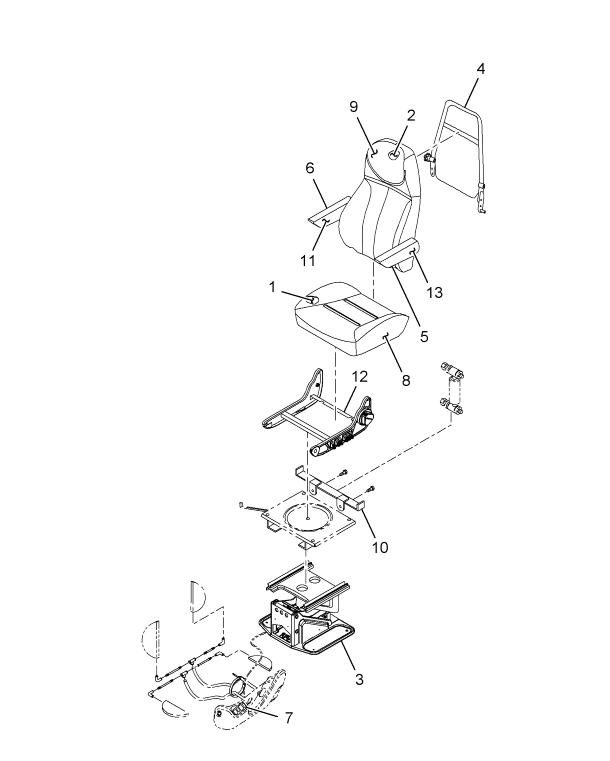

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| FR LOWER SEAT CUSHION | 1 | 2587143C1 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| ARMREST DRIVER LEFT HAND W/UPHOLESTRY | 1 | 2588656C1 |
| ARMREST DRIVER NATIONALIONAL RIGHT HAND 42OZ | 1 | 2210416C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
CROSS REFERENCES
- NATL ST 50541.80A0021
- NATL ST 50541.80A0021
