3777776C92
SEAT, LEFT HAND, BUS BODY, 39 BTI 3-PT YL 42 VINYL GRAY N/ICS
IC Bus
BACK ORDERED
Please contact us for information on lead time
$629.95
$755.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, LEFT HAND, BUS BODY, 39 BTI 3-PT YL 42 VINYL GRAY N/ICS

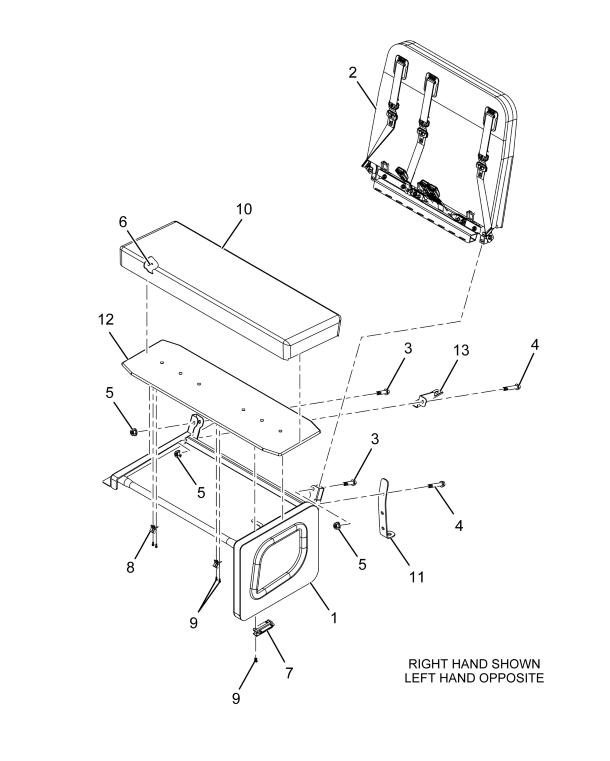

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT L 39 IN | 1 | 3683851C6 |
| SUPPORT DUAL RISER TAIL, R | 1 | 3854734C1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682035C3 |
| REINFORCEMENT, BUS BODY, WALL RISER, L | 1 | 3769975C1 |
| BACKREST, 39 BTI 3PT W/LATCH N/ICS | 1 | 3778102C1 |
| BOLT, HEXAGON FLANGE HEAD | 2 | 2229009C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| FOAM, CUSHION SEAT 39" | 1 | 3681473C1 |
| LATCH, SEAT, IMMI | 1 | 3952868C1 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW , PAN HD CR, #10-16 X 3/4 W/ 1/4" SHLDR | 6 | 4112851C1 |
