3623894C1

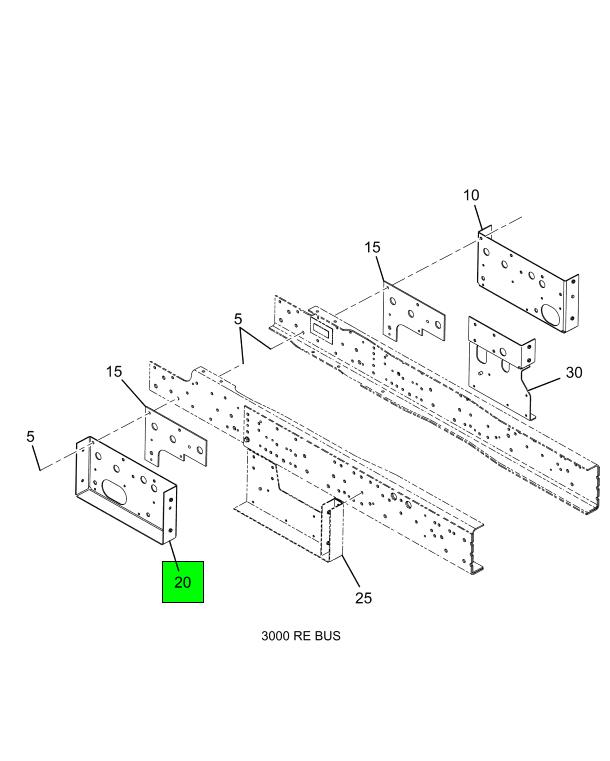

SUPPORT ASSEMBLY, PANEL CLEAN AIR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$169.95
$203.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SUPPORT ASSEMBLY, PANEL CLEAN AIR
Weight
20.04 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SUPPORT CLEAN AIR PANELS | 1 | 3623893C1 |
| PIN SUPPORT PANEL | 1 | 3623892C1 |
| NUT 3/8" UNC | 2 | 350517R1 |
